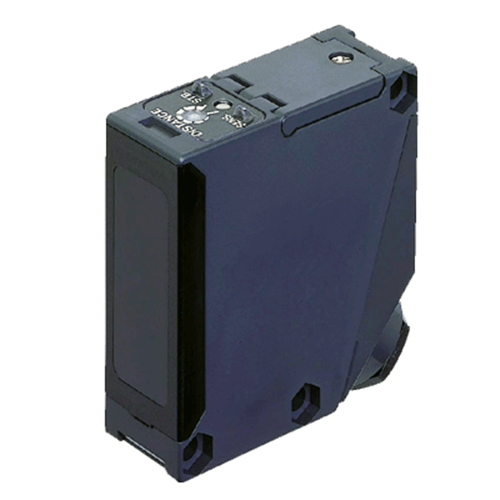

Panasonic EQ-512T Adjustable Range Reflective Photoelectric Sensor 12-24VDC 0.1-1mm Sensing NPN-Output

Product Code: EQ-512T

  • Compact photoelectric sensor with 0.1-1 mm range
  • Operates on 12-24 VDC, <45 mA current
  • Durable ABS housing, IP67 protection
  • Fast response time under 2 ms
  • Orange LED for operation indication
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EQ - 500

Electrical

Max. Switching Distance
100mm to 1000mm
Sensing Type
Reflective
Type of Switching Output
NPN
Electrical Connection
Screw Terminal
Light Source
Infrared LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: ABS, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
26mm
Height
68mm
Width
68mm
Cable Length
100m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
