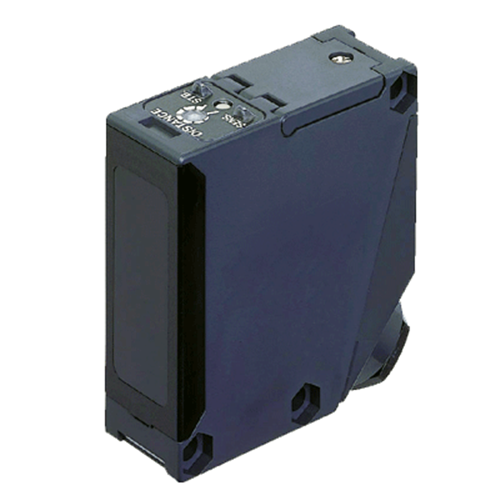

Panasonic EQ-511 Adjustable Range Reflective Photoelectric Sensor 12-24VDC 0.1-2.5m Sensing NPN-Output

Product Code: EQ-511

  • Sensing range: 0.1-2.5 m
  • Voltage: 12-24 VDC
  • Durable ABS body, polycarbonate cover
  • IP67 protection rating
  • Fast response time: <20 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EQ - 500

Electrical

Max. Switching Distance
100mm to 2500mm
Sensing Type
Reflective
Type of Switching Output
NPN
Electrical Connection
Screw Terminal
Light Source
Infrared LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: ABS, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
26mm
Height
68mm
Width
68mm
Cable Length
100m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
