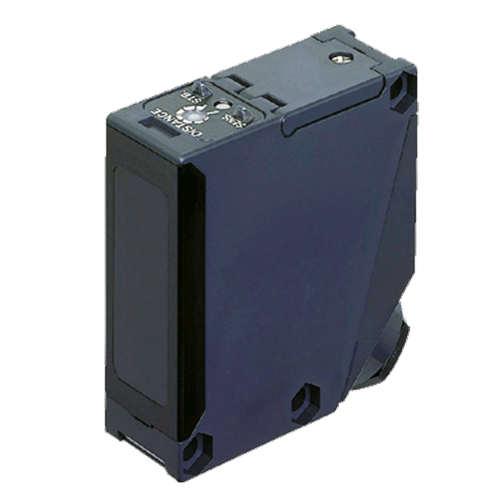

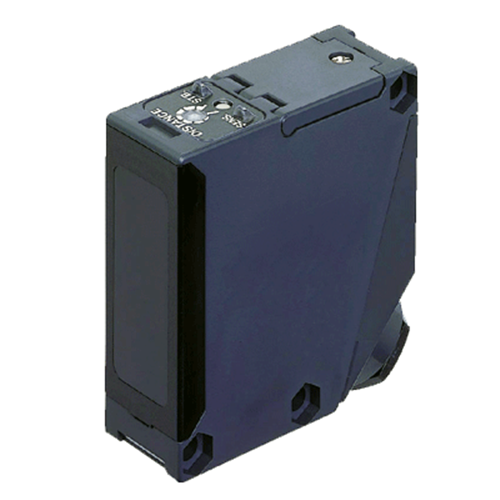

Panasonic EQ-502 Adjustable Range Reflective Photoelectric Sensor 12-240VDC 0.1-1mm Sensing 100m L Cable

Product Code: EQ-502

  • Compact photoelectric sensor, 0.1-1 mm range
  • Wide voltage range: 12-240 VDC
  • Durable ABS housing, IP67 rated
  • Quick response time: <20 ms
  • Easy screw connection setup
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EQ - 500

Electrical

Max. Switching Distance
100mm to 1000mm
Sensing Type
Reflective
Type of Switching Output
Relay
Electrical Connection
Screw Terminal
Light Source
Infrared LED (modulated)
Rated Voltage (Ur)
24-240 V AC ±10 % or 12 to 240 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: ABS, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
26mm
Height
68mm
Width
68mm
Cable Length
100m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
