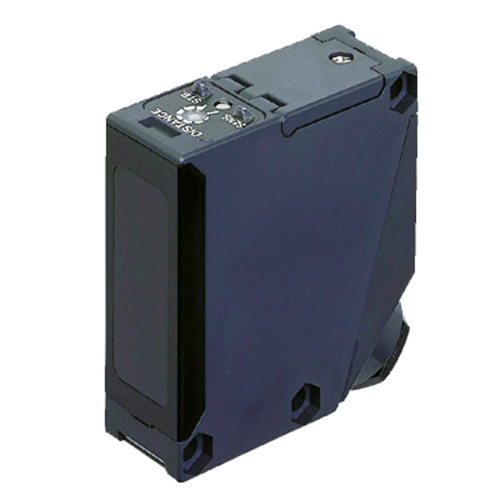

Panasonic EQ-501T Adjustable Range Reflective Photoelectric Sensor 12-240VDC 0.1-2.5m Sensing 100m L Cable

Product Code: EQ-501T

  • Sensing range of 0.1-2.5 m
  • Wide voltage range: 12-240 VDC
  • Durable ABS body with polycarbonate cover
  • IP67 protection for harsh environments
  • Fast response time of 20 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EQ - 500

Electrical

Max. Switching Distance
100mm to 2500mm
Sensing Type
Reflective
Type of Switching Output
Relay
Electrical Connection
Screw Terminal
Light Source
Infrared LED (modulated)
Rated Voltage (Ur)
24-240 V AC ±10 % or 12 to 240 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: ABS, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
26mm
Height
68mm
Width
68mm
Cable Length
100m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
