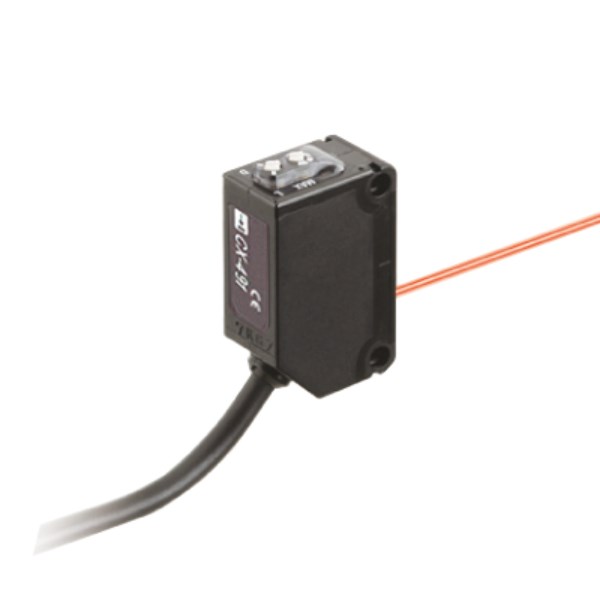

Panasonic CX-493-P-Z Compact Photoelectric Sensor 12-24VDC 50mm Sensing PNP-Output

Product Code: CX-493-P-Z

  • Compact safety sensor with 50 mm range
  • Operates on 12-24 VDC, 10 mA current
  • Durable PBT body and acrylic lens
  • IP67 protection for harsh environments
  • Light/Dark operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
5000mm
Sensing Type
Retroreflective
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
