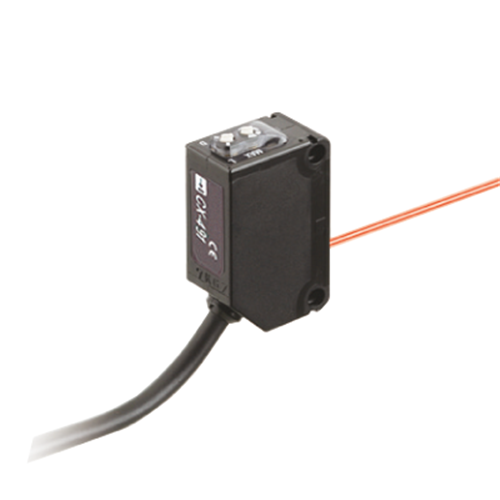

Panasonic CX-493-P-J Compact Photoelectric Sensor 12-24VDC 5m Sensing 2m L Cable

Product Code: CX-493-P-J

  • 5 m sensing range for versatile applications
  • Wide voltage range of 12-24 VDC
  • Durable PBT housing with IP67 protection
  • Fast response time under 1 ms
  • Operates in temperatures from -30 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
5000mm
Sensing Type
Retroreflective
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
