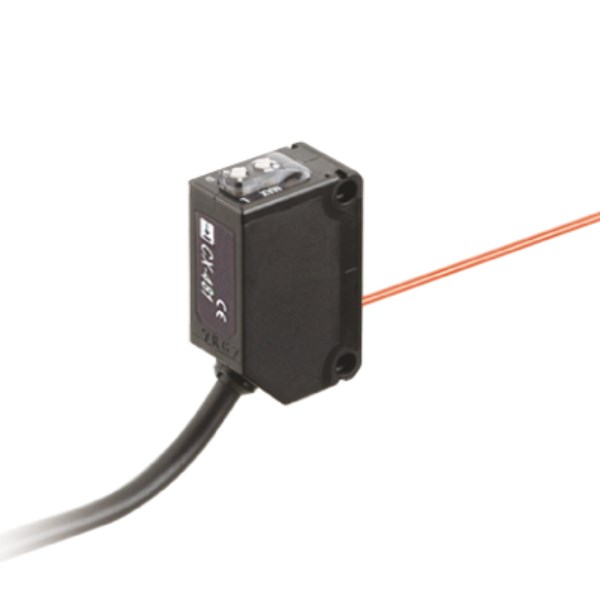

Panasonic CX-481-P Compact Photoelectric Sensor 12-24VDC 50-500mm Sensing PNP-Output

Product Code: CX-481-P

  • Sensing range of 50-500 mm
  • Operates on 12-24 VDC, 10 mA
  • Durable PBT body, acrylic lens
  • IP67 rated for robust protection
  • Infrared LED with Light/Dark ON options
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
50mm to 500mm
Sensing Type
Retroreflective
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Infrared LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Polycarbonate, Indicator cover: Polycarbonate

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
