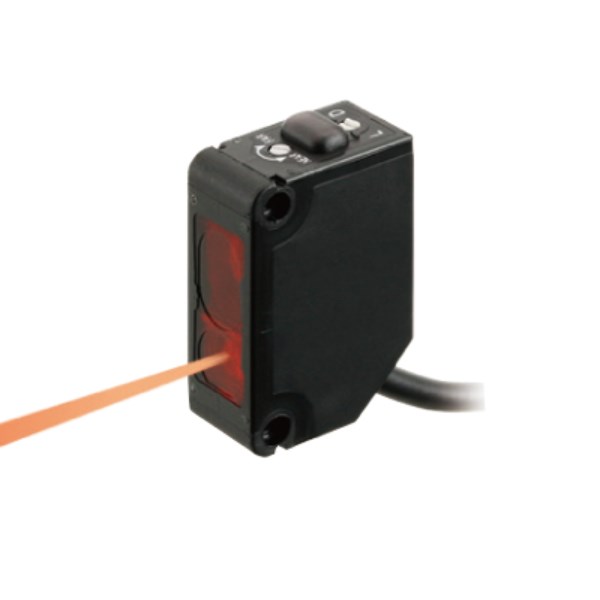

Panasonic CX-444-P Compact Photoelectric Sensor 12-24VDC PNP-Output

Product Code: CX-444-P

  • Compact safety sensor with PNP output
  • Durable PBT body and acrylic lens
  • IP67 rated for water and dust protection
  • Operates in -25 to 55°C temperature range
  • Red LED for detection status indication
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
2 mm to 50 mm (When distance is set to 50 mm) 15 mm to 100 mm (When distance is set to 100 mm)
Sensing Type
Adjustable Range Reflective type
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
