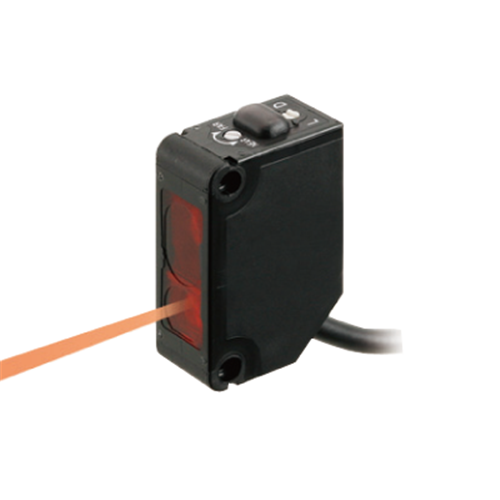

Panasonic CX-442-Z Compact Photoelectric Sensor 12-24VDC 20-300mm Sensing 2m L Cable

Product Code: CX-442-Z

  • Sensing range from 20 to 300 mm
  • Voltage range: 12-24 VDC, current <20 mA
  • Durable PBT housing with IP67 protection
  • Operates in -30 to 70°C temperature range
  • Quick response time of less than 1 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
20mm to 300mm
Sensing Type
Adjustable Range Reflective type
Type of Switching Output
NPN
Electrical Connection
M8 connector
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
