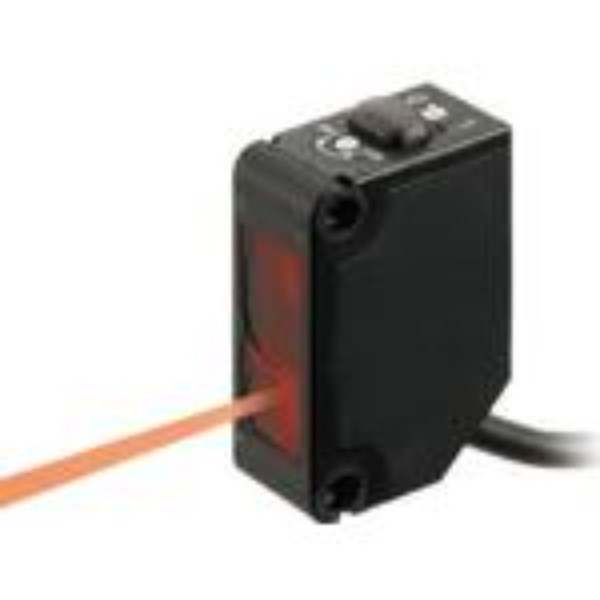

Panasonic CX-442-P-Z Compact Photoelectric Sensor 12-24VDC 2m L Cable PNP-Output

Product Code: CX-442-P-Z

  • Compact safety sensor in Cx-400 series
  • Operates on 12-24 VDC, 20 mA
  • Durable PBT body, polycarbonate lens
  • IP67 protection for harsh environments
  • Infrared LED with Light/Dark operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
20mm to 300mm
Sensing Type
Adjustable Range Reflective type
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
