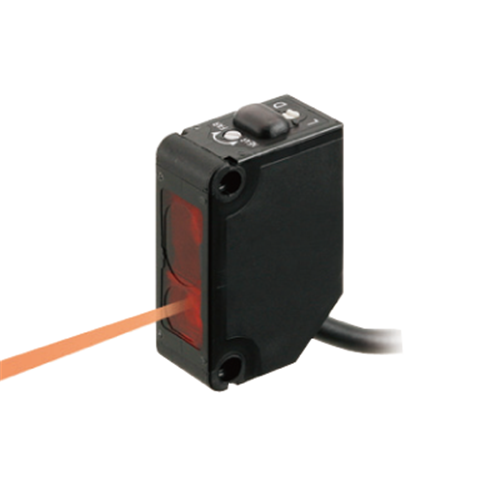

Panasonic CX-442 Compact Photoelectric Sensor 12-24VDC 20-300mm Sensing 2m L Cable

Product Code: CX-442

  • Sensing range of 20-300 mm
  • Rated voltage: 12-24 VDC
  • Durable PBT housing, IP67 protection
  • Fast response time under 1 ms
  • CE and EMC Directive approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
20mm to 300mm
Sensing Type
Adjustable Range Reflective type
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
