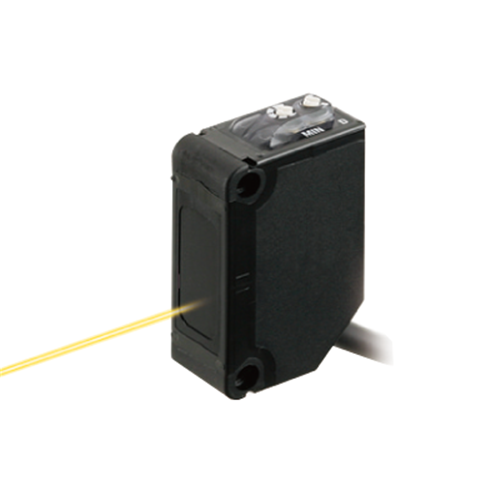

Panasonic CX-422 Compact Photoelectric Sensor 12-24VDC 2m L Cable NPN-Output

Product Code: CX-422

  • Compact Cx-400 series design
  • Operates on 12-24 VDC, 15 mA
  • Durable PBT body with acrylic lens
  • IP67 protection for harsh environments
  • Infrared LED with Light/Dark ON indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
800mm
Sensing Type
Diffuse reflective
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Infrared LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
