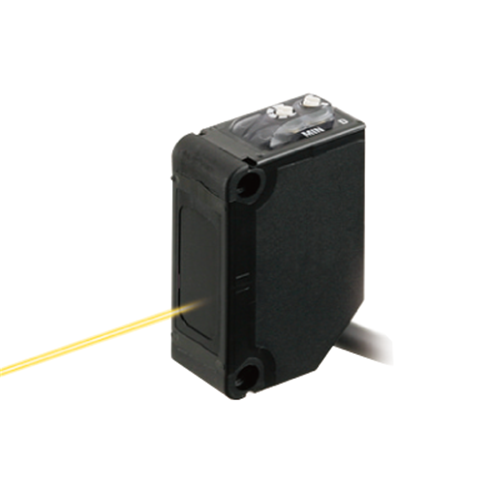

Panasonic CX-421-P Compact Photoelectric Sensor 12-24VDC 2m L Cable PNP-Output

Product Code: CX-421-P

  • Compact safety sensor in Cx-400 series.
  • Operates on 12-24 VDC with 13 mA current.
  • Durable PBT body, acrylic lens; IP67 rated.
  • Light/Dark ON operation with infrared LED.
  • Suitable for temps from -25 to 55°C.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
300mm
Sensing Type
Diffuse reflective
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Infrared LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
