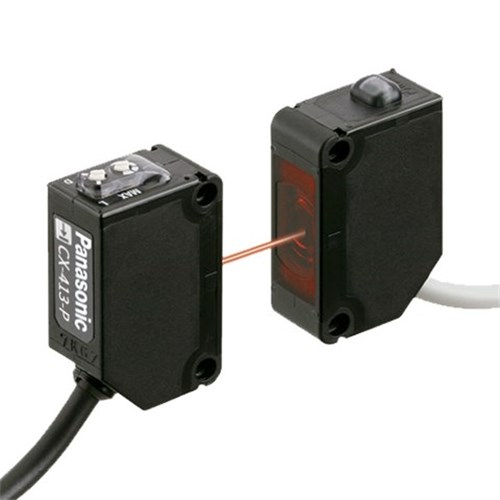

Panasonic CX-413-P-Z Compact Photoelectric Sensor 12-24VDC 12mm Sensing 2m L Cable PNP-Output

Product Code: CX-413-P-Z

  • Compact safety sensor with 12 mm sensing range
  • Operates on 12-24 VDC with PNP output
  • Durable PBT body, polycarbonate lens
  • IP67 protection for harsh environments
  • Infrared LED for reliable detection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
30000mm
Sensing Type
Thru-beam type
Type of Switching Output
PNP
Electrical Connection
M8 connector
Light Source
Infrared LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
