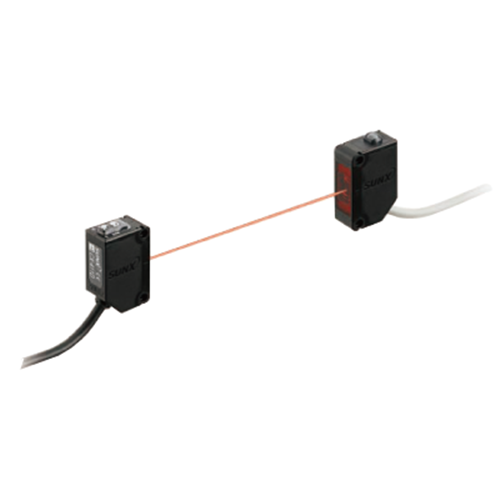

Panasonic CX-412-C5 Compact Photoelectric Sensor 12-24VDC 15m Sensing 2m L Cable

Product Code: CX-412-C5

  • Sensing range up to 15 m
  • Operates on 12-24 VDC
  • Durable PBT housing, IP67 rated
  • Fast response time of <1 ms
  • CE and EMC Directive approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
15000mm
Sensing Type
Thru-beam type
Type of Switching Output
NPN
Light Source
Infrared LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
