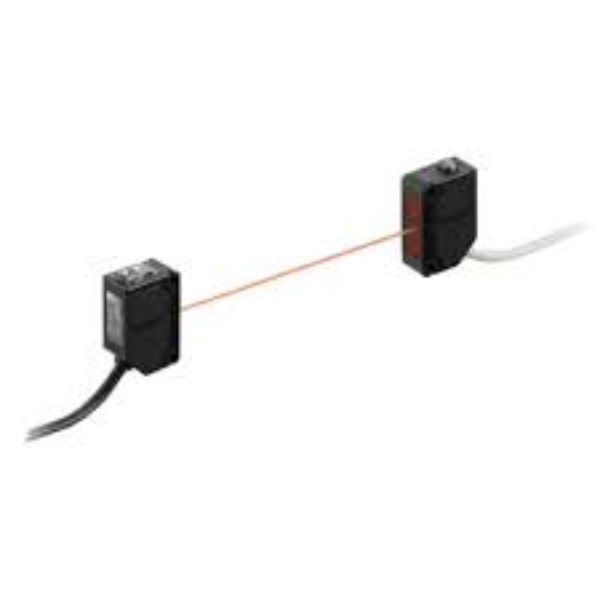

Panasonic CX-411-P Compact Photoelectric Sensor 12-24VDC 1000mm Sensing 2m L Cable PNP-Output

Product Code: CX-411-P

  • 1000 mm sensing range for precise detection
  • Operates on 12-24 VDC with low current draw
  • Durable PBT body and acrylic lens construction
  • IP67 rated for robust environmental protection
  • Red LED emitter with Light/Dark ON indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
CX - 400

Electrical

Max. Switching Distance
10000mm
Sensing Type
Thru-beam type
Type of Switching Output
PNP
Electrical Connection
M12 pigtail
Light Source
Red LED
Rated Voltage (Ur)
12 V to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT, Lens: Acrylic, Indicator cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
31mm
Width
11.2mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
