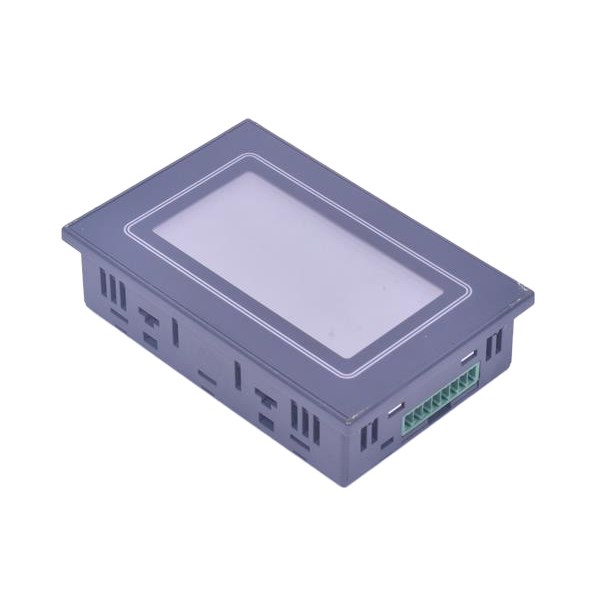

Panasonic AIGT0030B1 Human Machine Interface

Product Code: AIGT0030B1

  • 24 VDC rated power for efficient operation
  • Operates in temperatures from 0 to 50°C
  • IP65 protection against dust and water
  • High-resolution display: 128 mm x 64 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Display
Brand
Panasonic
Series
GT

Electrical

Input Ratings
4.5 to 5.5 V DC
Power Consumption
1W
Supply Voltage
5V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
2 colors (black / white)

Dimensions & Physical Data

Depth
24mm
Height
72mm
Width
110mm
Panel Cut-Out Size
105mm x 67mm
Display Size
128 (W) x 64 (H) dots; Displayable area is 70.38 (W) x 35.18 (H) mm

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Communication & Control

Serial Ports
2
Supported Serial Protocols
Panasonic FP series, General-purpose serial interface, other companies' PLCs

Accessories & Additional Information

Development Software
Terminal GTWIN (Ver. 2.30 or later)

Documents

IPD Product Catalogue V17
