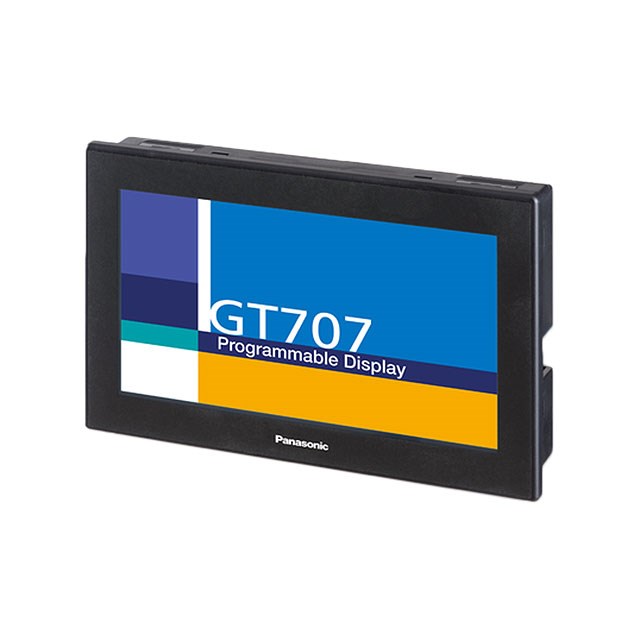

Panasonic AIG707WCL1G2 Programmable Display 7in TFT Colour LCD (White LED) 21.6-26.4VDC

Product Code: AIG707WCL1G2

  • 7" TFT colour LCD with white LED
  • Operates on 21.6-26.4 VDC, 6 W power
  • IP65 rated for robust protection
  • RS-232C communication interface
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Display
Brand
Panasonic
Series
GT

Electrical

Input Ratings
21.6 to 26.4 V DC
Input Type
Touch key
Power Consumption
6W
Supply Voltage
24V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
65 536 colors

Dimensions & Physical Data

Depth
34mm
Height
122mm
Width
186mm
Panel Cut-Out Size
178mm x 113.6mm
Display Size
7 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Communication & Control

Ethernet Port Speed
100Mbps / 10Mbps
Ethernet Ports
1
Expandable Communications
Supports connection to up to 64 PLC units via Ethernet
Fieldbus Interface
Modbus-TCP, Mitsubishi Electric MC protocol
Serial Ports
1
USB Port
1
Supported Ethernet Protocols
Panasonic dedicated protocol, FP series, Modbus-TCP, Mitsubishi Electric MC protocol
Supported Serial Protocols
Panasonic FP series, General-purpose serial interface, other companies' PLCs

Safety, Standards & Compliance

Certifications / Approvals
CE, UKCA, UL / c-UL (UL 508)

Accessories & Additional Information

Development Software
Terminal GTWIN Ver.3

Documents

IPD Product Catalogue V17
