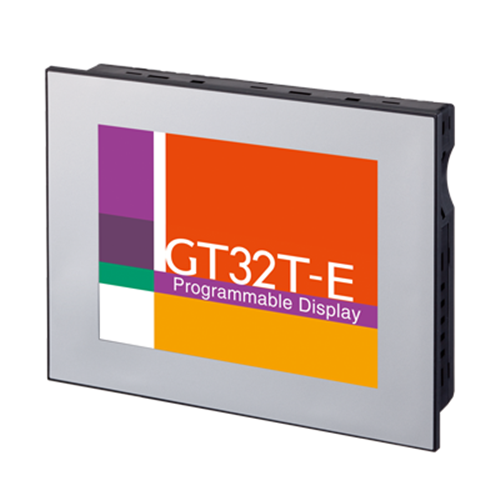

Panasonic AIG32TQ03DE Programmable Display

Product Code: AIG32TQ03DE

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Display
Brand
Panasonic
Series
GT

Electrical

Channel Isolation
Transformer-isolated power supply
Input Ratings
21.6 to 26.4 V DC
Power Consumption
7.2W
Supply Voltage
24V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
4096 colors

Dimensions & Physical Data

Depth
39.1mm
Height
128.8mm
Width
163.2mm
Panel Cut-Out Size
150.2mm x 119mm
Display Size
5.7 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
-20°C to 60°C
IP Rating
IP67

Communication & Control

Serial Ports
1
USB Port
1
Supported Serial Protocols
Panasonic FP Series, General-purpose Serial, and Modbus RTU

Safety, Standards & Compliance

Certifications / Approvals
CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL 508)

Accessories & Additional Information

Development Software
Terminal GTWIN Ver.3
