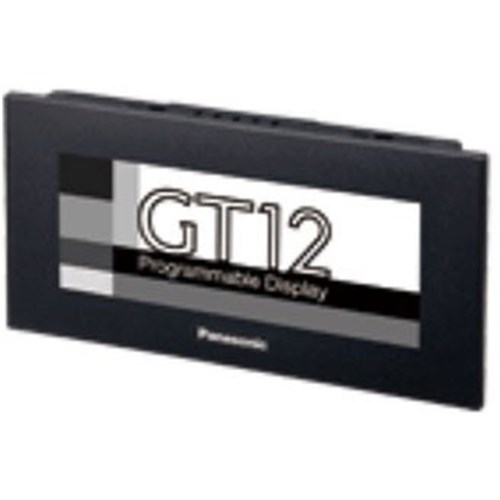

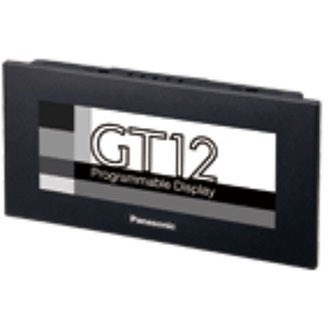

Panasonic AIG12GQ14D Compact Programmable Display 4.6 in TFT Monochrome LCD (Black/White) 21.6-26.4VDC

Product Code: AIG12GQ14D

  • Compact 4.6" TFT monochrome LCD display
  • Operates on 21.6-26.4 VDC with 1.7 W power consumption
  • IP67-rated for robust protection in harsh environments
  • Supports RS-422/RS-485 communication interfaces
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Compact Programmable Display
Brand
Panasonic
Series
GT

Electrical

Channel Isolation
Transformer-isolated power supply
Input Ratings
21.6 to 26.4 V DC
Power Consumption
1.7W
Supply Voltage
24V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
2 colors (black / white, 8-gray scale)

Dimensions & Physical Data

Depth
30mm
Height
74mm
Width
146mm
Panel Cut-Out Size
139mm x 67mm
Display Size
4.6 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP67

Communication & Control

Serial Ports
1
USB Port
1
Supported Serial Protocols
Panasonic FP Series, General-purpose Serial, and Modbus RTU

Safety, Standards & Compliance

Certifications / Approvals
CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL 508)

Accessories & Additional Information

Development Software
Terminal GTWIN (Ver. 2 or Ver. 3)

Documents

IPD Product Catalogue V17
