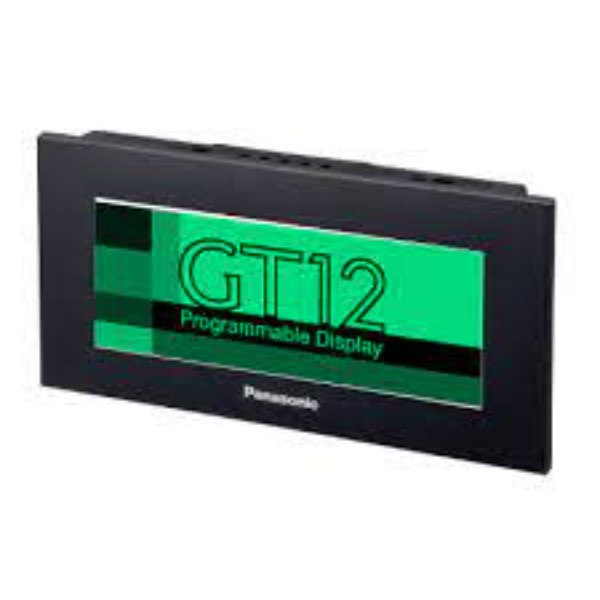

Panasonic AIG12GQ12D Compact Programmable Display 4.6 in TFT Monochrome LCD (Green/Orange/Red Backlight) 21.6-26.4VDC

Product Code: AIG12GQ12D

  • Compact 4.6" monochrome LCD display
  • Versatile green/orange/red backlight
  • Reliable RS-232C communication interface
  • Operates efficiently at 21.6-26.4 VDC
  • Robust IP67 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Compact Programmable Display
Brand
Panasonic
Series
GT

Electrical

Channel Isolation
Transformer-isolated power supply
Input Ratings
21.6 to 26.4 V DC
Power Consumption
1.7W
Supply Voltage
24V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
2 colors (black / white, 8-gray scale)

Dimensions & Physical Data

Depth
30mm
Height
74mm
Width
146mm
Panel Cut-Out Size
139mm x 67mm
Display Size
4.6 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP67

Communication & Control

Serial Ports
1
USB Port
1
Supported Serial Protocols
Panasonic FP Series, General-purpose Serial, and Modbus RTU

Safety, Standards & Compliance

Certifications / Approvals
CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL 508)

Accessories & Additional Information

Development Software
Terminal GTWIN (Ver. 2 or Ver. 3)

Documents

IPD Product Catalogue V17
