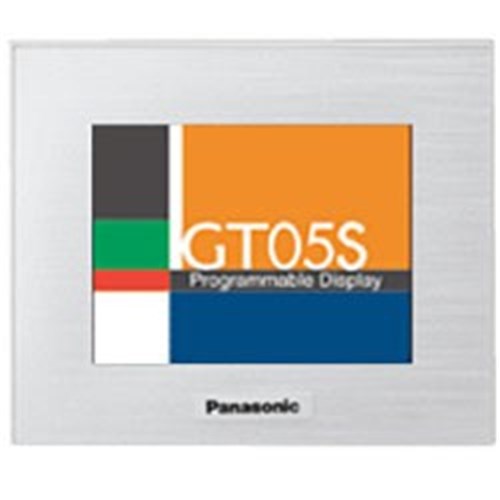

Panasonic AIG05SQ05D Compact Programmable Display 3.5 in TFT Colour LCD 21.6-26.4VDC

Product Code: AIG05SQ05D

  • Compact 3.5" TFT colour LCD display
  • IP65 rated for dust and water resistance
  • Operates in temperatures from 0 to 50°C
  • Efficient power use at just 3.6 W
  • Supports RS-422 and RS-485 communication
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Compact Programmable Display
Brand
Panasonic
Series
GT

Electrical

Channel Isolation
Transformer-isolated power supply
Input Ratings
21.6 to 26.4 V DC
Power Consumption
3.6W
Supply Voltage
24V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
4096 colors

Dimensions & Physical Data

Depth
33.8mm
Height
92.2mm
Width
110mm
Panel Cut-Out Size
99.2mm x 85.2mm
Display Size
3.5 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Communication & Control

Serial Ports
1
USB Port
1
Supported Serial Protocols
Panasonic FP Series, General-purpose Serial, and Modbus RTU

Safety, Standards & Compliance

Certifications / Approvals
CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL 508)

Accessories & Additional Information

Development Software
Terminal GTWIN Ver.3

Documents

IPD Product Catalogue V17
