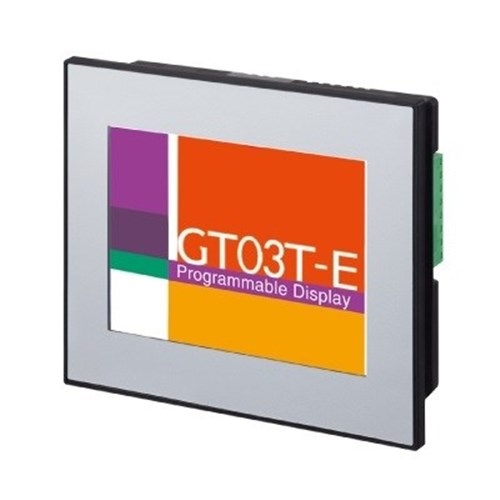

Panasonic AIG03TQ13DE Programmable Display 3.5 in TFT Colour LCD 24VDC

Product Code: AIG03TQ13DE

  • Compact 3.5" TFT Colour LCD display
  • Operates in -20 to 60°C temperature range
  • IP67 rated for robust protection
  • Equipped with RS-232-C communication port
  • Efficient 24 VDC power usage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Display
Brand
Panasonic
Series
GT

Electrical

Input Ratings
21.6 to 26.4 V DC
Power Consumption
3.1W
Supply Voltage
24V DC
Sunlight Readable
Yes
Touch Type
Analog touch

Mechanical

Display Colour/Type
TFT color

Dimensions & Physical Data

Depth
30mm
Height
86mm
Width
98mm
Panel Cut-Out Size
87.5mm x 76.5mm
Display Size
3.5 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
-20°C to 60°C
IP Rating
IP67

Communication & Control

Serial Ports
1
USB Port
1
Supported Serial Protocols
Panasonic FP Series, General-purpose Serial, and Modbus RTU

Safety, Standards & Compliance

Certifications / Approvals
CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL 508)

Accessories & Additional Information

Development Software
Terminal GTWIN Ver.3

Documents

IPD Product Catalogue V17
