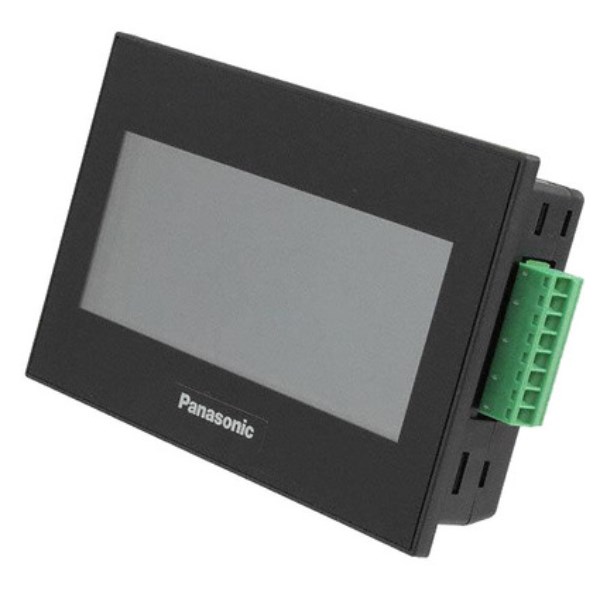

Panasonic AIG02GQ22D Compact Programmable Display 3.8 in TFT Monochrome LCD 21.6-26.4VDC

Product Code: AIG02GQ22D

  • Compact 3.8" TFT monochrome LCD display
  • IP67-rated for robust protection
  • Operates in temperatures from 0 to 50°C
  • Multiple backlight options: Green, Orange, Red
  • Supports RS-422 and RS-485 communication
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Compact Programmable Display
Brand
Panasonic
Series
GT

Electrical

Input Ratings
21.6 to 26.4 V DC
Power Consumption
1.9W
Supply Voltage
24V DC
Touch Type
Analog touch

Mechanical

Display Colour/Type
2 colors (black/white)

Dimensions & Physical Data

Depth
27mm
Height
74mm
Width
112mm
Panel Cut-Out Size
105mm x 67mm
Display Size
3.8 inch

Environmental

Storage Temperature
-20°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP67

Communication & Control

Serial Ports
1
USB Port
1
Supported Serial Protocols
Panasonic FP Series, General-purpose Serial, and Modbus RTU

Safety, Standards & Compliance

Certifications / Approvals
CE (EMC/RoHS), UKCA, UL/c-UL (File E96300)

Accessories & Additional Information

Development Software
Terminal GTWIN (Ver. 2.97 or later)

Documents

IPD Product Catalogue V17
