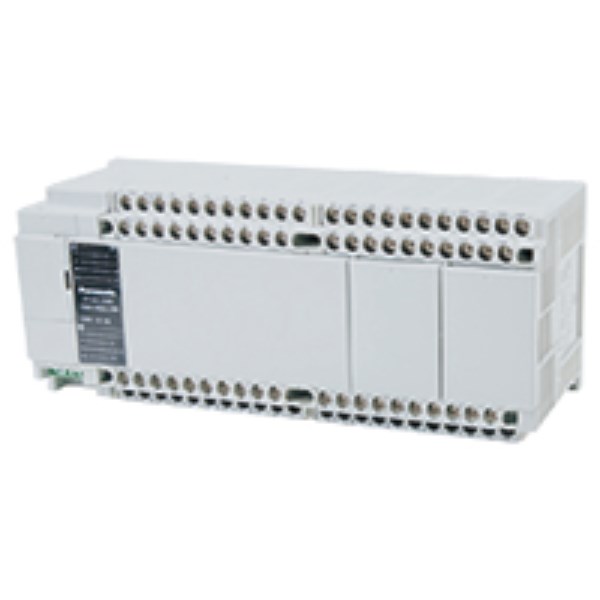

Panasonic AFPXHC60R Programmable Controller 100-240VAC 32 Inputs 28 Outputs

Product Code: AFPXHC60R

  • Supports 100-240 VAC input range
  • High insulation resistance of 100 MOhm
  • Easy DIN rail mounting
  • Operates in 0 to 55°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Galvanic
No. of Analog Inputs
32
No. of Analog Outputs
28
No. of Digital Inputs
32
No. of Digital Outputs
28
Output Ratings
2:00 AM
Input Ratings
24 V DC
Input Type
NPN
Output Type
Relay
Power Consumption
<=47 W
Supply Voltage
100 - 240 V AC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82 mm
Height
90 mm
Width
220 mm

Environmental

Storage Temperature
-40? - +70?
Operating Temperature
0? - +55?

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
PLC link MEWTOCOL-COM (master / slave) MODBUS RTU (master / slave) General-purpose communication Modem initialization

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7
