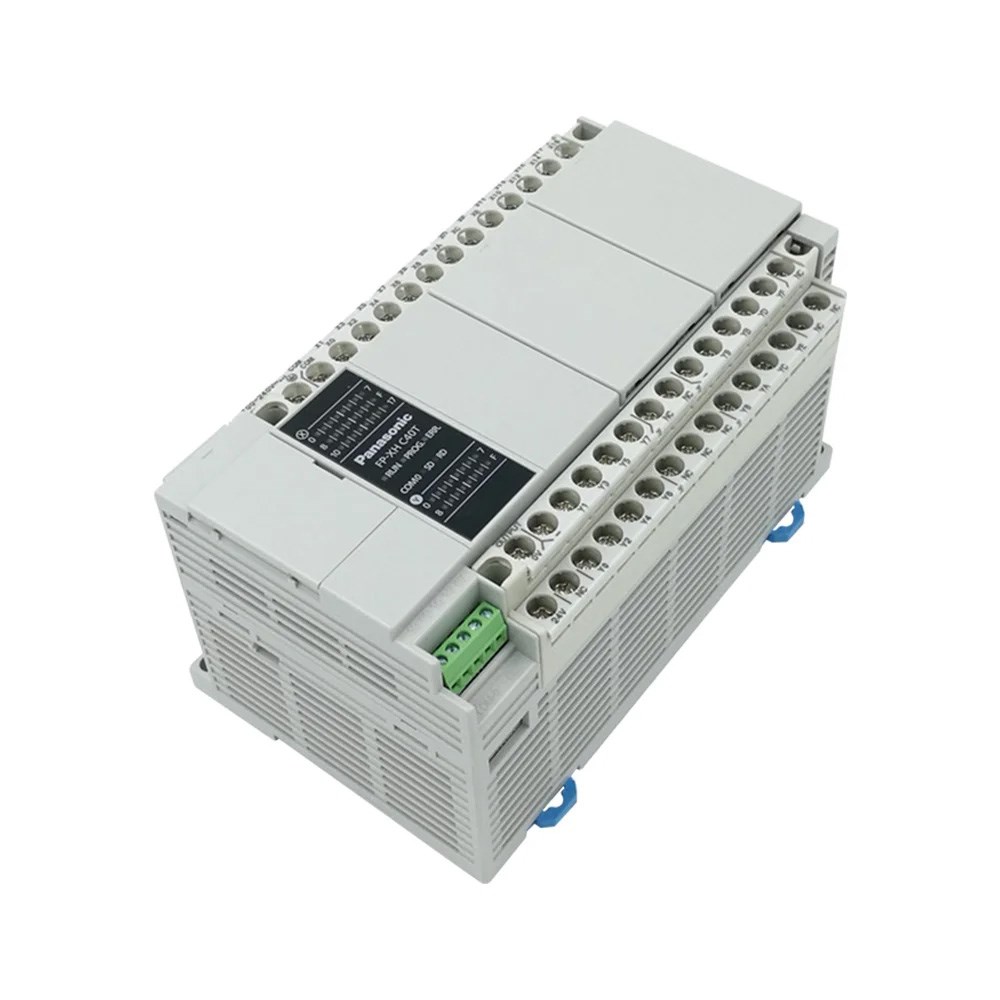

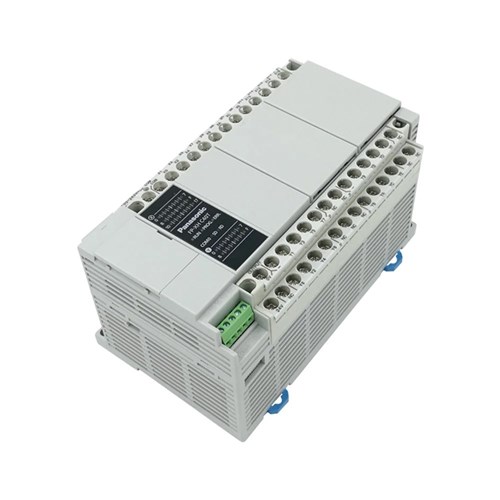

Panasonic AFPXHC40T Programmable Controller 100-240VAC 40 Analogue Outputs 24 Digital Inputs 16 Digital Outputs

Product Code: AFPXHC40T

  • Operates on 100-240 VAC
  • Includes USB & RS-232C comms
  • RJ-45 screw clamp terminal
  • DIN rail mounting compatible
  • Temp range: 0 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Photocoupler
No. of Analog Inputs
24
No. of Analog Outputs
16
No. of Digital Inputs
24
No. of Digital Outputs
16
Output Ratings
0.5 A
Input Ratings
24 V DC
Input Type
NPN
Output Type
Transistor Output (NPN)
Power Consumption
<=43W
Supply Voltage
100V to 240V AC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82mm
Height
90mm
Width
150mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
PLC link MEWTOCOL-COM (master / slave) MODBUS RTU (master / slave) General-purpose communication Modem initialization

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7

Documents

IPD Product Catalogue V17
