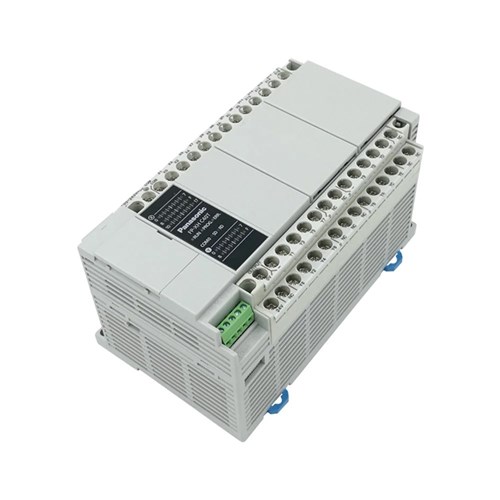

Panasonic AFPXHC40R Programmable Controller 100-240VAC 40 Analogue Outputs 24 Digital Inputs 16 Digital Outputs

Product Code: AFPXHC40R

  • Rated for 100-240 VAC
  • USB and RS-232C communication ports
  • RJ-45 Screw Clamp Terminal, USB connection
  • Easy DIN Rail mounting
  • Operates from 0 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Galvanic
No. of Analog Inputs
24
No. of Analog Outputs
16
No. of Digital Inputs
24
No. of Digital Outputs
16
Output Ratings
2:00 AM
Input Ratings
24 V DC
Input Type
NPN
Output Type
Relay
Power Consumption
<=43 W
Supply Voltage
100 - 240 V AC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82 mm
Height
90 mm
Width
150 mm

Environmental

Storage Temperature
-40? - +70?
Operating Temperature
0? - +55?

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
PLC link MEWTOCOL-COM (master / slave) MODBUS RTU (master / slave) General-purpose communication Modem initialization

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7

Documents

IPD Product Catalogue V17
