Specifications

Product Type

Control Unit

Brand

Panasonic

Series

FPX

Analog Resolution 14 bit	Channel Isolation Photocoupler	No. of Analog Inputs 16
No. of Analog Outputs 14	No. of Digital Inputs 16	No. of Digital Outputs 14
Output Ratings 0.5 A	Input Ratings 24 V DC	Input Type NPN
Output Type Transistor Output (NPN)	Power Consumption <=40W	Supply Voltage 24V DC
Terminal Type Screw Terminal

Depth

82mm

Height

90mm

Width

130mm

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 55°C

Expandable Communications Yes	Fieldbus Interface 1	Serial Ports 1
USB Port 1	Supported Serial Protocols MEWTOCOL COM (computer link) Master/Slave General communication PLC link MODBUS RTU Master/Slave

Hazardous Location Ratings

Level of Contamination 2

Certifications / Approvals

EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Development Software

Control FPWIN Pro7/FPWIN GR7

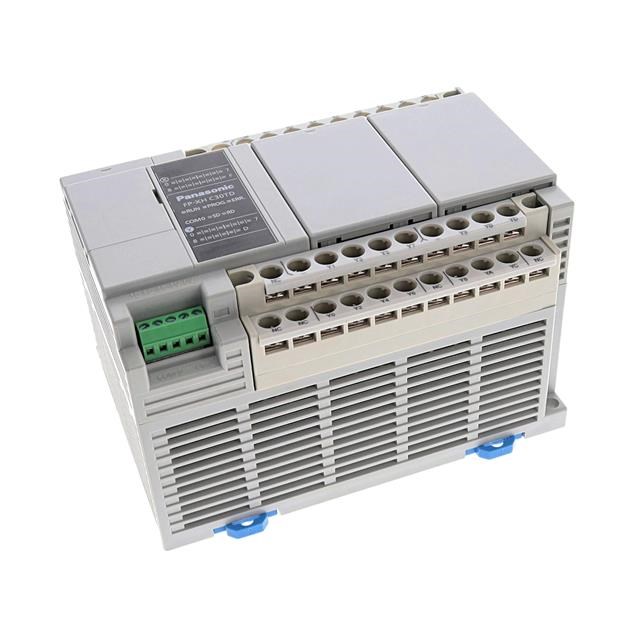

Panasonic AFPXHC30TD Programmable Controller 24VDC 30 Analogue Outputs 16 Digital Inputs 14 Digital Outputs
