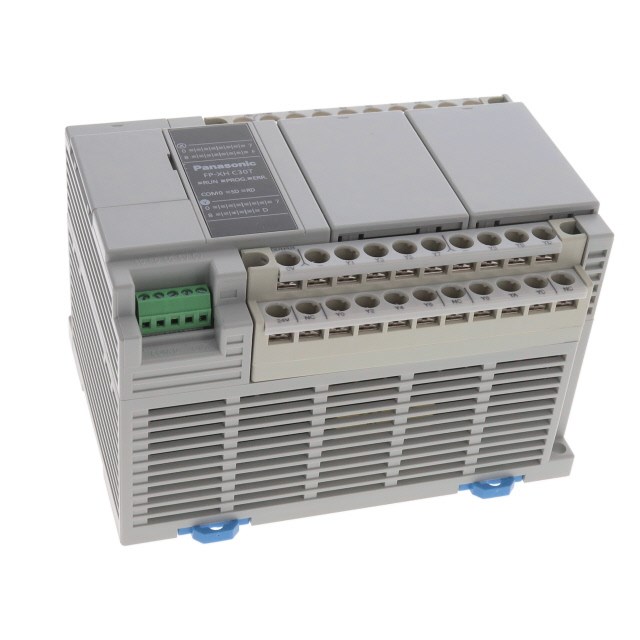

Panasonic AFPXHC30T Programmable Controller 100-240VAC 30 Analogue Outputs 16 Digital Inputs 14 Digital Outputs

Product Code: AFPXHC30T

  • Rated for 100-240 VAC power supply
  • Features USB and RS-232C comms
  • RJ-45 screw clamp terminal connection
  • DIN rail mounting design
  • Operates in 0 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Photocoupler
No. of Analog Inputs
16
No. of Analog Outputs
14
No. of Digital Inputs
16
No. of Digital Outputs
14
Output Ratings
0.5 A
Input Ratings
24 V DC
Input Type
NPN
Output Type
Transistor Output (NPN)
Power Consumption
<=40W
Supply Voltage
100V to 240V AC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82mm
Height
90mm
Width
130mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
MEWTOCOL COM (computer link) Master/Slave General communication PLC link MODBUS RTU Master/Slave

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7

Documents

IPD Product Catalogue V17
