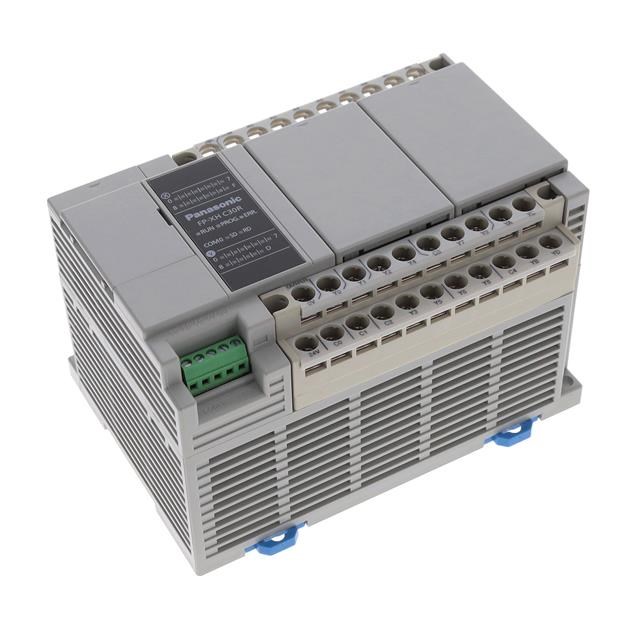

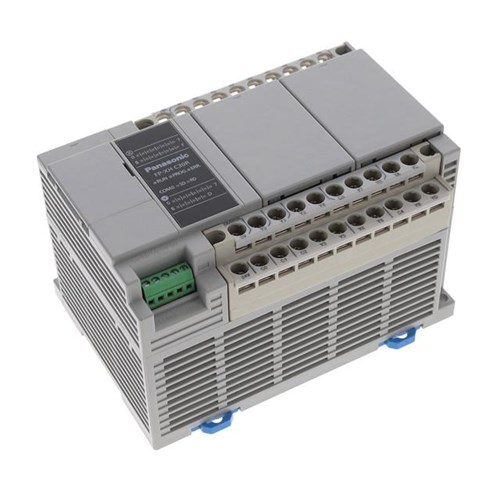

Panasonic AFPXHC30R Programmable Controller 100-240VAC 30 Analogue Outputs 16 Digital Inputs 14 Digital Outputs

Product Code: AFPXHC30R

  • Supports 100-240VAC for versatile use
  • USB & RS-232C communication ports
  • RJ-45 screw clamp terminal connection
  • Easy DIN rail mounting
  • Operates in 0 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Galvanic
No. of Analog Inputs
16
No. of Analog Outputs
14
No. of Digital Inputs
16
No. of Digital Outputs
14
Output Ratings
2:00 AM
Input Ratings
24 V DC
Input Type
NPN
Output Type
Relay
Power Consumption
<=40 W
Supply Voltage
100 - 240 V AC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82 mm
Height
90 mm
Width
130 mm

Environmental

Storage Temperature
-40? - +70?
Operating Temperature
0? - +55?

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
MEWTOCOL COM (computer link) Master/Slave General communication PLC link MODBUS RTU Master/Slave

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7
