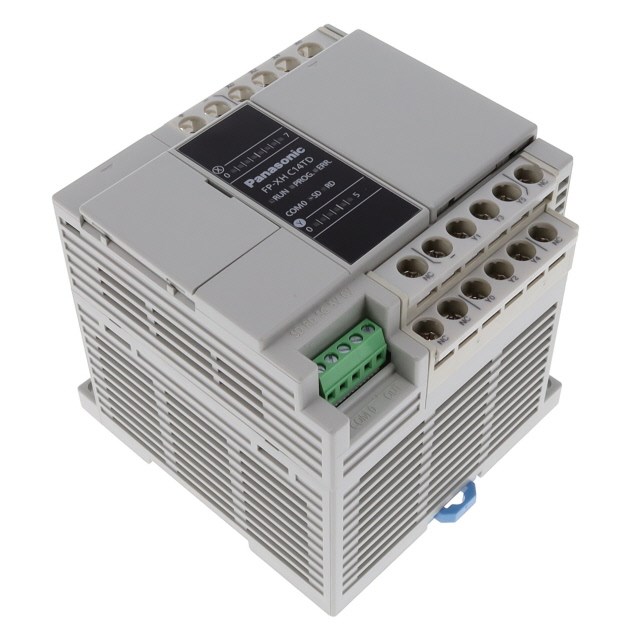

Panasonic AFPXHC14TD Programmable Controller 24VDC 14 Analogue Outputs 8 Digital Inputs 6 Digital Outputs

Product Code: AFPXHC14TD

  • Operates on 24 VDC for efficient performance
  • Features USB and RS-232C communication ports
  • Easy DIN rail mounting for quick installation
  • RJ-45 screw clamp terminal ensures secure connections
  • Operational temperature range: 0 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Photocoupler
No. of Analog Inputs
8
No. of Analog Outputs
6
No. of Digital Inputs
8
No. of Digital Outputs
6
Output Ratings
0.5 A
Input Ratings
24 V DC
Input Type
NPN
Output Type
Transistor Output (NPN)
Power Consumption
<=23W
Supply Voltage
24V DC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82mm
Height
90mm
Width
86mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
MEWTOCOL COM (computer link) Master/Slave General communication PLC link MODBUS RTU Master/Slave

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7

Documents

IPD Product Catalogue V17
