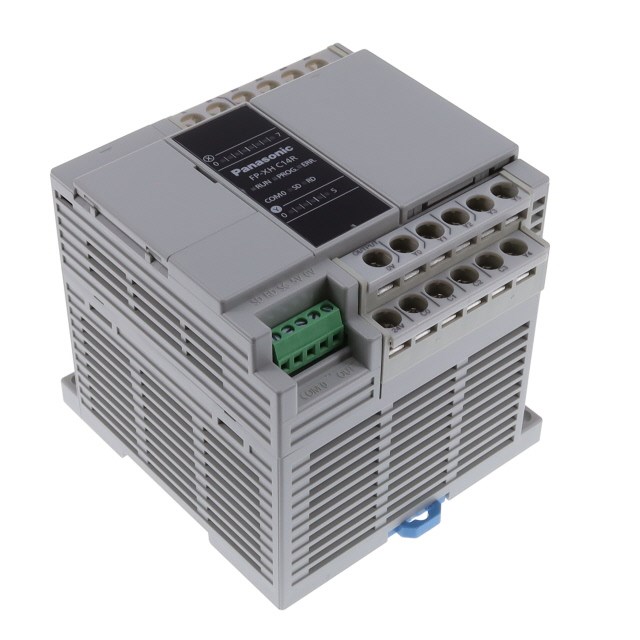

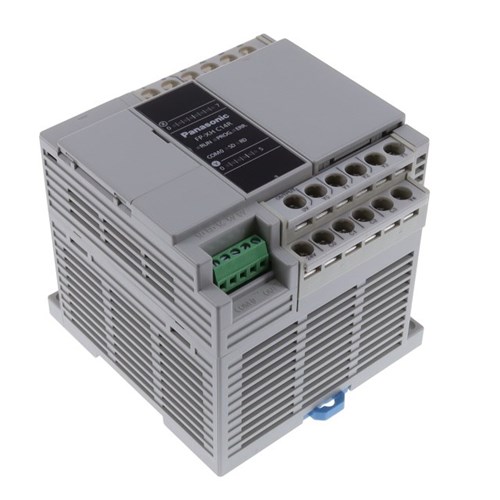

Panasonic AFPXHC14R Programmable Controller 100-240VAC 14 Analogue Outputs 8 Digital Inputs 6 Digital Outputs

Product Code: AFPXHC14R

  • Operates on 100-240 VAC
  • USB and RS-232C communication ports
  • RJ-45 screw clamp terminal connection
  • DIN rail mounting for easy installation
  • Suitable for 0 to 55°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Unit
Brand
Panasonic
Series
FPX

Electrical

Analog Resolution
14 bit
Channel Isolation
Galvanic
No. of Analog Inputs
8
No. of Analog Outputs
6
No. of Digital Inputs
8
No. of Digital Outputs
6
Output Ratings
2:00 AM
Input Ratings
24 V DC
Input Type
NPN
Output Type
Relay
Power Consumption
<=23 W
Supply Voltage
100 - 240 V AC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
82 mm
Height
90 mm
Width
86 mm

Environmental

Storage Temperature
-40? - +70?
Operating Temperature
0? - +55?

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
MEWTOCOL COM (computer link) Master/Slave General communication PLC link MODBUS RTU Master/Slave

Safety, Standards & Compliance

Hazardous Location Ratings
Level of Contamination 2
Certifications / Approvals
EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7

Documents

IPD Product Catalogue V17
