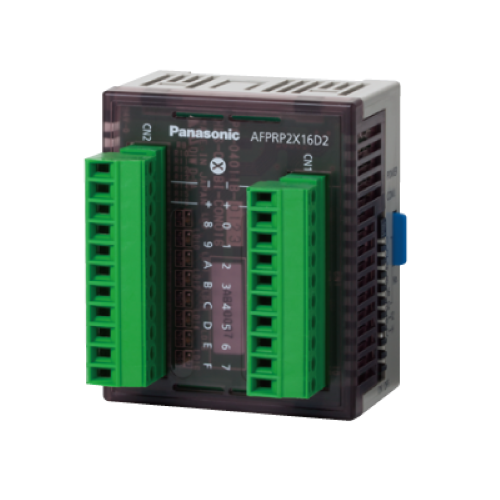

Panasonic AFPRP2X16D2 Remote I/O Unit 24VDC

Product Code: AFPRP2X16D2

  • Operates at 24 VDC, 170 mA
  • Screw type terminal block for easy connection
  • Withstands shocks up to 147 ms
  • Operates in humidity from 10% to 95%
  • Suitable for temperatures between 0 and 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Phls (Remote I/O)
Brand
Panasonic
Series
FP7

Electrical

Channel Isolation
Non-isolated
Digital Inputs
8
Digital Outputs
8
Output Ratings
20.4 to 28.8 V DC
Input Ratings
24 VDC
Input Type
Voltage
Output Type
Sink type (Open collector output)
Supply Voltage
20.4V to 28.8V
Terminal Type
Connector

Dimensions & Physical Data

Depth
31.5mm
Height
49.5mm
Width
59.5mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Safety, Standards & Compliance

Hazardous Location Ratings
PD 2
Certifications / Approvals
UL, KC

Documents

IPD Product Catalogue V17
