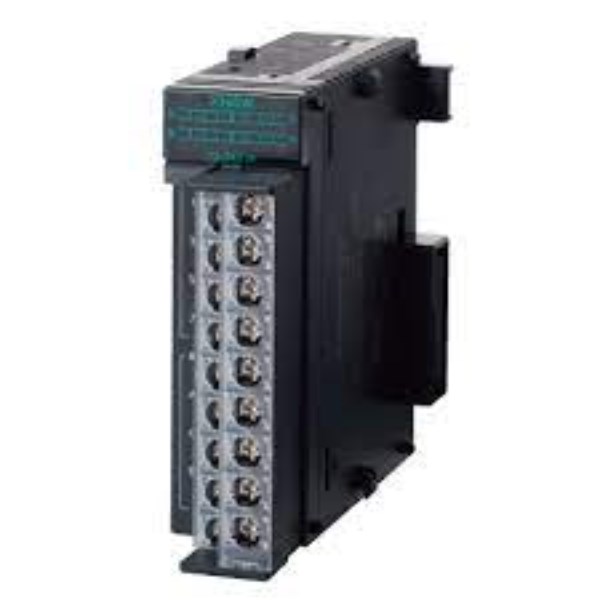

Panasonic AFP7X16DW Input and Output Unit 12-24VDC

Product Code: AFP7X16DW

  • Supports 12-24 VDC input voltage
  • Low current draw at 25 mA
  • Terminal block for easy connections
  • High shock resistance of 147 ms
  • Operates in temperatures from 0 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital I/O Module
Brand
Panasonic
Series
FP7

Electrical

Channel Isolation
Photocoupler
Digital Inputs
16
Input Ratings
12-24 V DC
Input Type
DC
Power Consumption
0.144W
Supply Voltage
12V to 24V DC
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
80mm
Height
90mm
Width
28mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Safety, Standards & Compliance

Hazardous Location Ratings
PD 2
Certifications / Approvals
CE, UL, KC

Documents

IPD Product Catalogue V17
