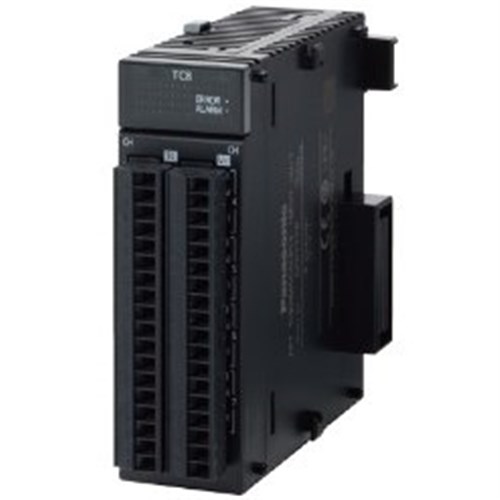

Panasonic AFP7TC8 Temperature Input Unit 8 -Channel

Product Code: AFP7TC8

  • Compact size: 28mm W x 90mm H x 94mm D
  • Operates in 0 to 50°C temperature range
  • High humidity tolerance: 10-95%
  • Durable with shock resistance of 147 m/s²
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Temperature Input Units
Brand
Panasonic
Series
FP7

Electrical

Analog Resolution
0.1 °C
Channel Isolation
PhotoMOS relay
No. of Analog Inputs
8
Input Ratings
Voltage -10 to 10 V DC (Resolution: 1/62,500) 0 to 5 V DC (Resolution: 1/31,250) 1 to 5 V DC (Resolution: 1/25,000)(Note 1) -100 to 100 mV DC (Resolution: 1/62,500) Current 0 to 20 mA (Resolution: 1/31,250) 4 to 20 mA (Resolution: 1/25,000)(Note 1) 8.1 Specifications 8-2 WUME-FP7TCRTD-05 Thermocouple (Resolution: 0.1°C) K1: -100.0 to 600.0°C / K2: -200.0 to 1370.0°C (Note 6) J1: -100.0 to 400.0°C / J2: -200.0 to 1200.0°C(Note 6) T: -270.0 to 400.0°C N: -270.0 to 1300.0°C R: 0.0 to 1760.0°C S: 0.0 to 1760.0°C B: 0.0 to 1820.0°C E: -270.0 to 1000.0°C PLII: 0.0 to 1390.0°C WRe5-26: 0.0 to 2315.0°C
Input Type
Resistance/Voltage/Current
Terminal Type
Screw Terminals
Analog Inputs
8

Dimensions & Physical Data

Depth
80mm
Height
90mm
Width
28mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Safety, Standards & Compliance

Hazardous Location Ratings
PD 2
Certifications / Approvals
CE, UL, KC

Documents

IPD Product Catalogue V17
