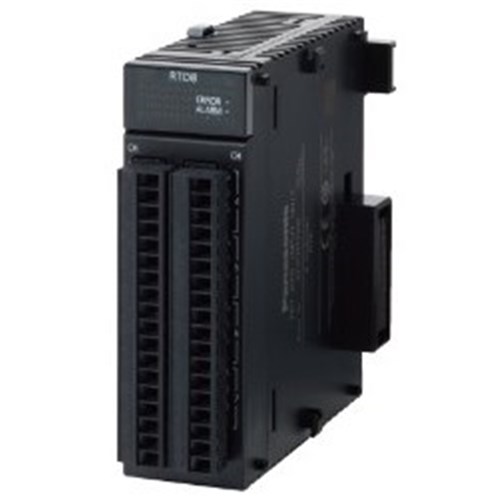

Panasonic AFP7RTD8 Temperature Input Unit 8 -Channel

Product Code: AFP7RTD8

  • Compact size: 28mm W x 90mm H x 94mm D
  • Operates in temperatures from 0 to 55°C
  • High shock resistance at 147 m/s²
  • Vibration resistant from 5 to 8.4 Hz
  • Suitable for humid environments (10-95%)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Temperature Input Units
Brand
Panasonic
Series
FP7

Electrical

Analog Resolution
0.1 °C
Channel Isolation
PhotoMOS relay
Input Ratings
Pt100-1: -100.0 to 200.0°C Pt100-2: -200.0 to 650.0°C JPt100-1: -100.0 to 200.0°C JPt100-2: -200.0 to 650.0°C Pt1000: -100.0 to 100.0°C
Input Type
Resistance
Terminal Type
Screw Terminals
Analog Inputs
8

Dimensions & Physical Data

Depth
80mm
Height
90mm
Width
28mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Safety, Standards & Compliance

Hazardous Location Ratings
PD 2
Certifications / Approvals
CE, UL, KC
