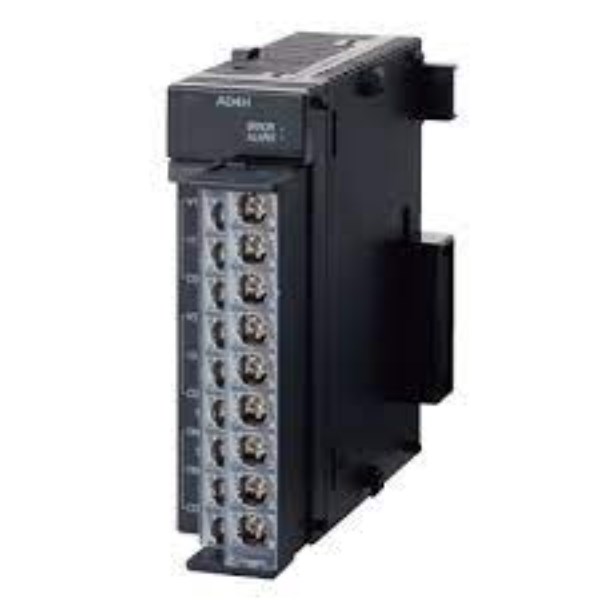

Panasonic AFP7AD4H Analog Input and Output Unit 24VDC 4 -Channel

Product Code: AFP7AD4H

  • Compact design: 28mm width, 90mm height, 102mm depth
  • Operates at 24 VDC with low current of 4.5 mA
  • Suitable for temperatures from 0 to 55°C
  • High shock resistance of 147 m/s²
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog I/O Unit
Brand
Panasonic
Series
FP7

Electrical

Analog Resolution
16 bits
Channel Isolation
Optical coupler
Supply Voltage
21.6V to 26.4V DC
Terminal Type
Screw Terminals
Analog Inputs
4

Dimensions & Physical Data

Depth
80mm
Height
90mm
Width
28mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
PD 2
Certifications / Approvals
CE, UL, KC

Documents

IPD Product Catalogue V17
