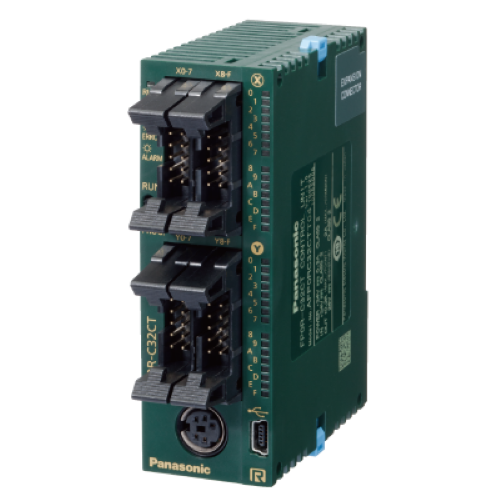

Panasonic AFP0RT32MP Programmable Controller 24VDC 32 Analogue Outputs

Product Code: AFP0RT32MP

  • Operates at 24 VDC for reliable control
  • MIL Connector ensures secure connections
  • Withstands shock resistance of 147 ms
  • Functions in humidity from 10% to 95%
  • Operational temp range: 0 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Controller
Brand
Panasonic
Series
FP0R

Electrical

Analog Resolution
12 bit/ 14 bit
Channel Isolation
Photocoupler
No. of Analog Inputs
16
No. of Analog Outputs
16
No. of Digital Inputs
16
No. of Digital Outputs
16
Output Ratings
0.2 A
Input Ratings
24 VDC
Input Type
NPN
Supply Voltage
24V DC
Terminal Type
MIL Connector

Dimensions & Physical Data

Depth
30mm
Height
90mm
Width
60mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
2(COM Port and Tool Port)
USB Port
1
Supported Serial Protocols
Computer link (slave) Modem initialization General-purpose communication (only in RUN mode)

Safety, Standards & Compliance

Certifications / Approvals
CE marking (EMC Directive, Low Voltage Directive*, RoHS Directive) UKCA marking (EMC Regulations, Low Voltage Regulations*, RoHS Regulations) * Relay output type only

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7
