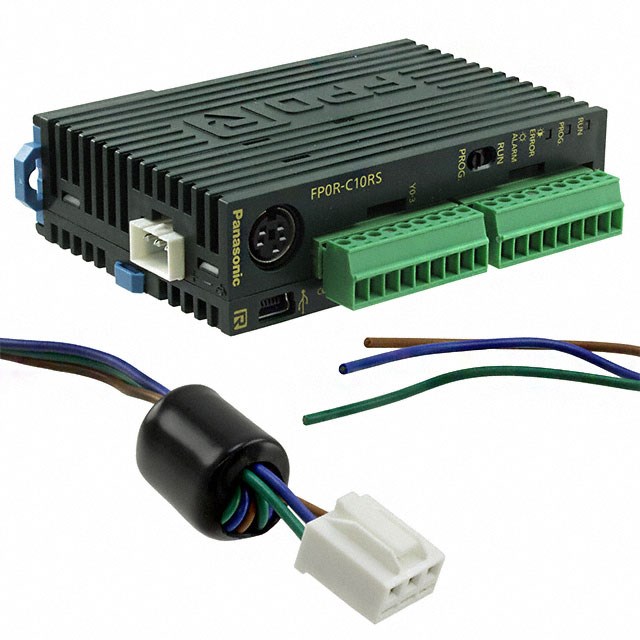

Panasonic AFP0RC10RS Programmable Controller 24VDC 10 Analogue Outputs

Product Code: AFP0RC10RS

  • Control unit with 24 VDC rated voltage
  • Terminal block connection for easy setup
  • Shock resistance of 147 ms ensures durability
  • Operates in temperatures from 0 to 55°C
  • Handles humidity levels between 10% and 95%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Controller
Brand
Panasonic
Series
FP0R

Electrical

Analog Resolution
12 bit/ 14 bit
Channel Isolation
Photocoupler
No. of Analog Inputs
6
No. of Analog Outputs
4
No. of Digital Inputs
6
No. of Digital Outputs
4
Output Ratings
2:00 AM
Input Ratings
24 VDC
Input Type
NPN
Output Type
Relay
Supply Voltage
24 V DC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
25 mm
Height
90 mm
Width
60 mm

Environmental

Storage Temperature
-40? - +70?
Operating Temperature
0? - +55?

Communication & Control

Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1(Tool Port)
USB Port
1
Supported Serial Protocols
Computer link (slave) Modem initialization General-purpose communication (only in RUN mode)

Safety, Standards & Compliance

Certifications / Approvals
CE marking (EMC Directive, Low Voltage Directive*, RoHS Directive) UKCA marking (EMC Regulations, Low Voltage Regulations*, RoHS Regulations)

Accessories & Additional Information

Development Software
Control FPWIN Pro7/FPWIN GR7

Documents

IPD Product Catalogue V17
