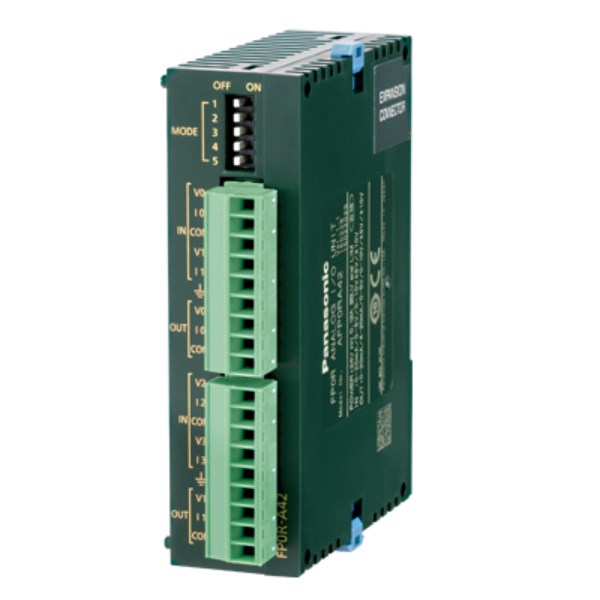

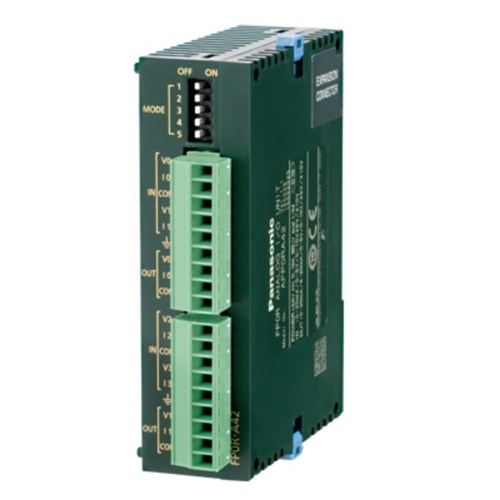

Panasonic AFP0RA42 Analog I/O Unit 15 V 4 Digital Inputs 2 Digital Outputs

Product Code: AFP0RA42

  • I/O module for efficient data handling
  • Operates at 15V with +/-30mA current
  • Suitable for temps from 0 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog I/O Unit
Brand
Panasonic
Series
FP0R

Electrical

Analog Resolution
12 bit/ 14 bit
Channel Isolation
Photocoupler Insulation-type DC/DC converter (Between input terminal to internal circuit)
No. of Analog Inputs
4
No. of Analog Outputs
2
No. of Digital Inputs
4
No. of Digital Outputs
2
Output Ratings
±10 mA
Input Ratings
±15 V
Input Type
Voltage/Current
Output Type
Voltage/Current
Supply Voltage
24V DC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
25mm
Height
90mm
Width
60mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C

Communication & Control

Expandable Communications
Yes

Safety, Standards & Compliance

Certifications / Approvals
CE marking (EMC Directive, RoHS Directive) UKCA marking (EMC Regulations, RoHS Regulations)

Documents

IPD Product Catalogue V17
