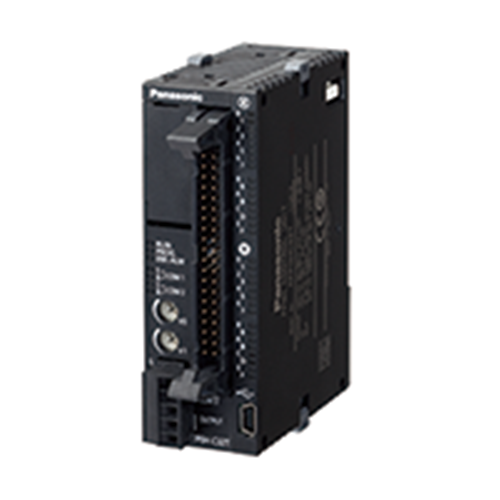

Panasonic AFP0HC32T Programmable Controller 24VDC 16 Digital Inputs 16 Digital Outputs

Product Code: AFP0HC32T

  • CPU designed for industrial automation
  • Operates at 24 VDC for efficiency
  • Ideal for control systems applications
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Programmable Controller
Brand
Panasonic
Series
FP0H

Electrical

Channel Isolation
Galvanic
Digital Inputs
16
Digital Outputs
16
Output Ratings
5 V DC/ 24 V DC
Input Ratings
24 V DC
Input Type
NPN
Output Type
Nch open drain
Power Consumption
3.36W
Supply Voltage
24V DC
Terminal Type
Male Connector

Dimensions & Physical Data

Depth
60mm
Height
90mm
Width
30.4mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 55°C
IP Rating
IP20

Communication & Control

Ethernet Port Speed
10/100 Mbps
Expandable Communications
Yes
Fieldbus Interface
RS-232C, three-wire system, 1 channel (Not insulated)
Serial Ports
1
USB Port
1
Supported Ethernet Protocols
TCP / IP, UDP
Supported Serial Protocols
MEWTOCOL-COM (Master / Slave) (Computer link) General-purpose communication PLC link MODBUS RTU (Master / Slave)

Safety, Standards & Compliance

Certifications / Approvals
EMC Directive, RoHS Directive

Accessories & Additional Information

Development Software
Control FPWIN Pro7/ Control FPWIN GR7 / xAscender Suite
