Specifications

Product Type

Programmable Controller

Brand

Panasonic

Series

FP0H

Channel Isolation Galvanic	Digital Inputs 16	Digital Outputs 16
No. of Digital Inputs 16	No. of Digital Outputs 16	Output Ratings 24 V DC
Input Ratings 24 V DC	Input Type PNP	Output Type Pch open drain
Power Consumption 4W	Supply Voltage 24V DC	Terminal Type Male Connector

Depth

60mm

Height

900mm

Width

42.4mm

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 55°C

IP Rating

IP20

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2	Expandable Communications Yes
Serial Ports 1	USB Port 1	Supported Ethernet Protocols TCP / IP, UDP (Communication Layer) EtherNet/IP MEWTOCOL-COM (Master / Slave) (Computer link) MODBUS-TCP (Master / Slave) MEWTOCOL-DAT (Master / Slave) General-purpose communication MC protocol (Note 1) (Master / Slave)
Supported Serial Protocols MEWTOCOL-COM (Master / Slave) (Computer link) General-purpose communication PLC link MODBUS RTU (Master / Slave)

Certifications / Approvals

EMC Directive, RoHS Directive

Development Software

Control FPWIN Pro7/ Control FPWIN GR7 / xAscender Suite

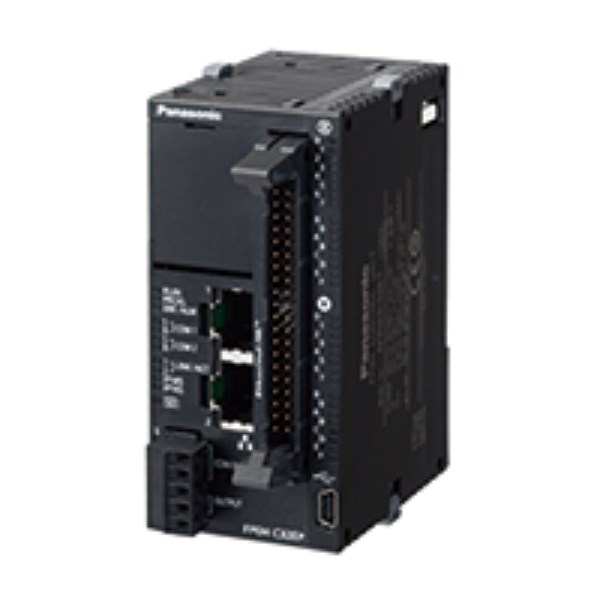

Panasonic AFP0HC32EP PNP Programmable Control Unit 21.6-26.4VDC
