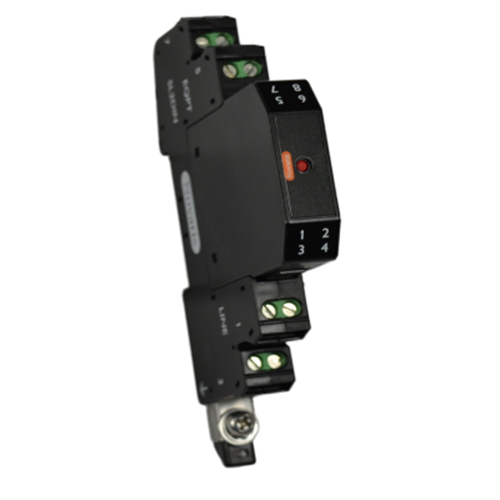

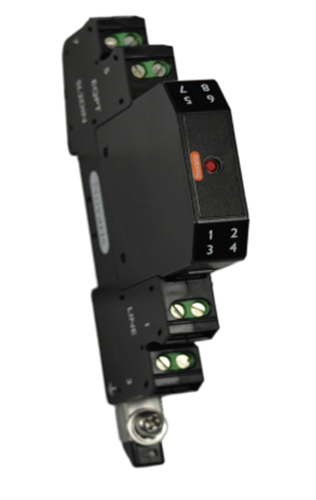

Novaris TCP-2.5-40-350 Track Circuit Protector With Base 20kA 350VDC TS35 12mm W 110mm D 71mm H Polycarbonate IP20

Product Code: TCP-2.5-40-350

  • Surge protection for 350 VDC systems
  • Handles up to 20 kA current
  • Compact size: 12 mm width
  • Quick response time of 100 ns
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Track Circuit Protector
Brand
Novaris
Series
TCP-2.5

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
Voltage Protection Level Up
690V, 1010V
Max. Discharge Current Imax (8/20µs)
20kA
Alarm Contact
Normally closed
Max. Continuous Operating Voltage
250 V AC, 320 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
