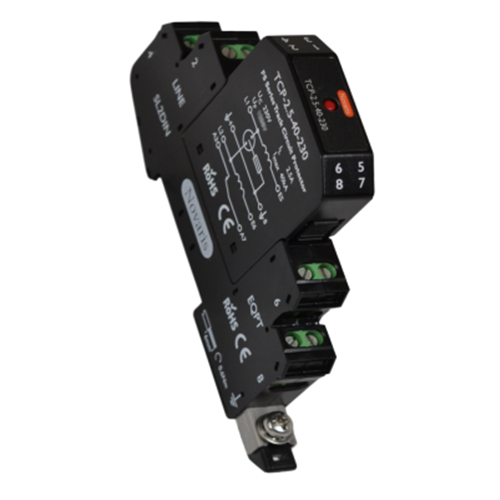

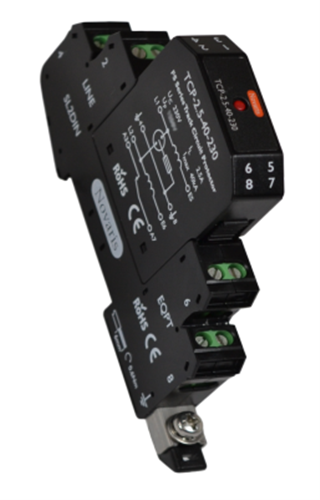

Novaris TCP-2.5-40-230 Track Circuit Protector With Base 20kA 200VDC TS35 12mm W 110mm D 71mm H Polycarbonate IP20

Product Code: TCP-2.5-40-230

  • Protects against transverse & common mode surges
  • Compact design with 12mm width
  • Fast response time of 100 ns
  • Operates in extreme temps: -40 to 70°C
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Track Circuit Protector
Brand
Novaris
Series
TCP-2.5

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
Voltage Protection Level Up
580V, 825V
Max. Discharge Current Imax (8/20µs)
20kA
Alarm Contact
Normally closed
Max. Continuous Operating Voltage
140 V AC, 200 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
