Products

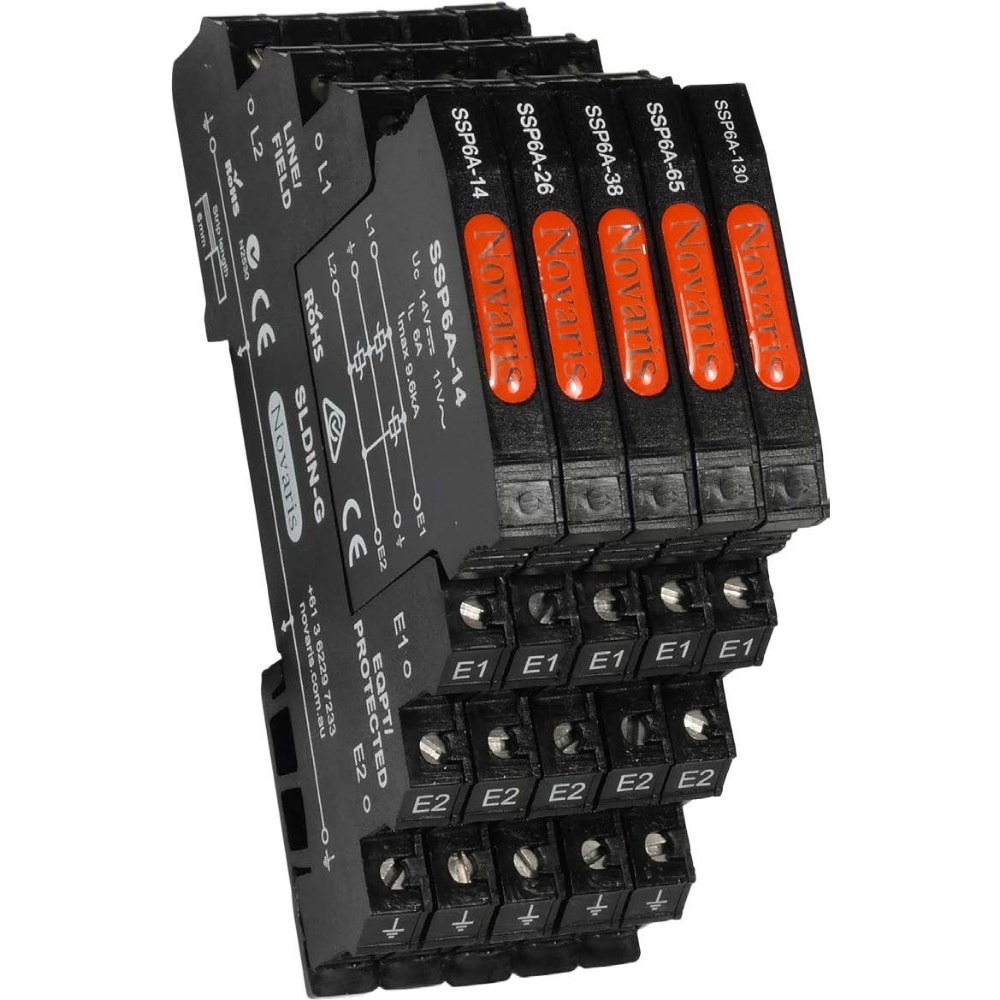

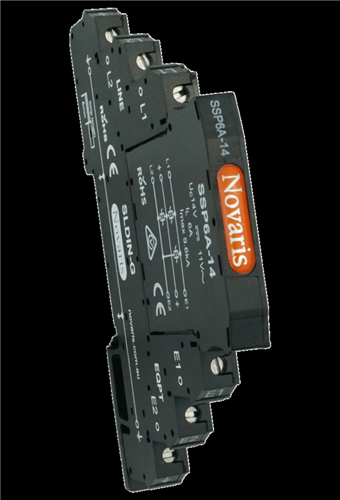

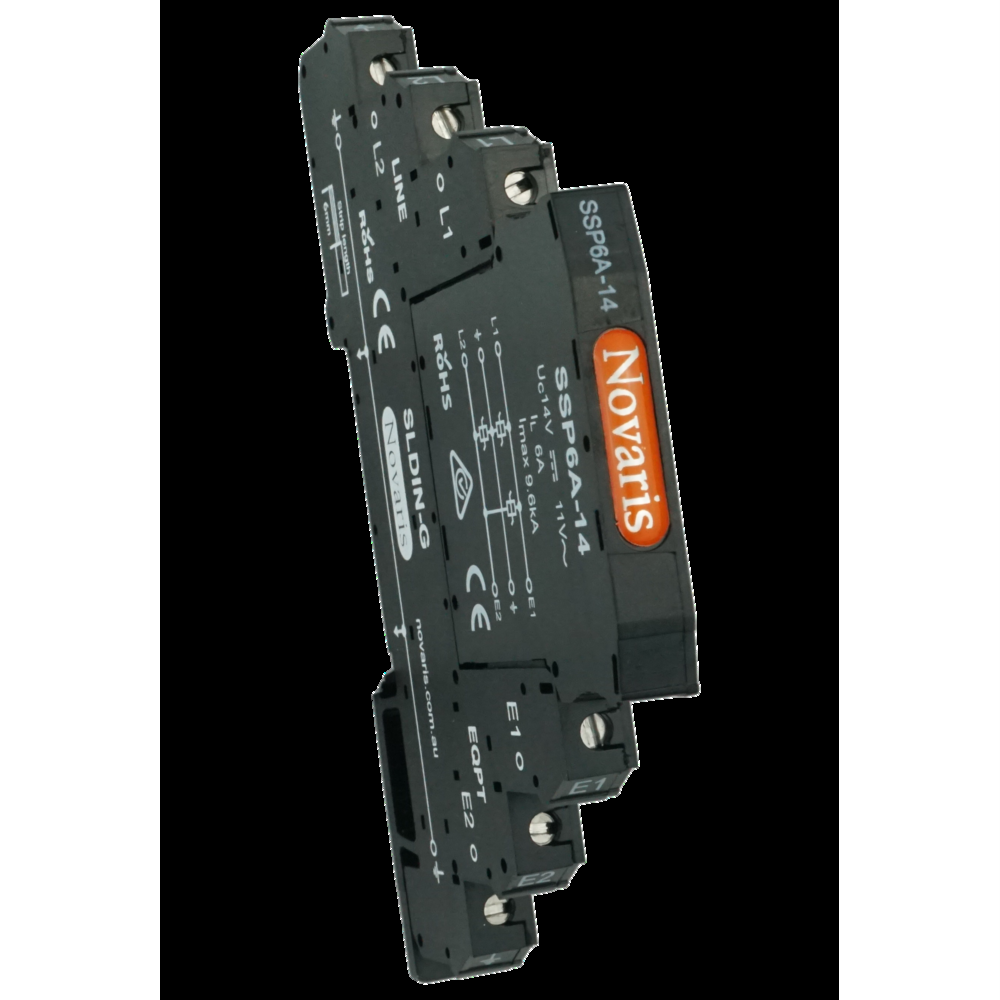

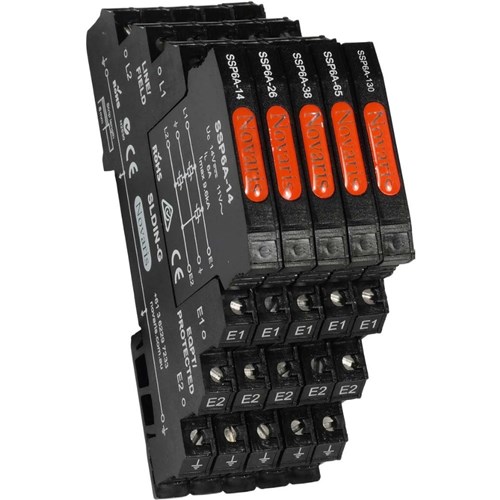

Novaris SSP6A-14-G Surge Protector 4.8kA 9.6kA 14VDC TS35 IP20

Product Code: SSP6A-14-G

  • Protects signal lines up to 14 VDC
  • Handles 4.8 kA per line, 9.6 kA common mode
  • Compact design: only 7 mm wide
  • Quick response time of <5 ns
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Slimline Series Surge Protectors
Brand
Novaris
Series
SSP6 A
Application
Signal, Process Control, Input / Output / Power

Electrical

Max. Load Current
6:00 AM
No. of Phases/Lines
1 pair
Modes of Protection
Transverse and Common
Voltage Protection Level Up
45 V, 380 V, 620 V
Max. Discharge Current Imax (8/20µs)
5 kA
Max. Continuous Operating Voltage
11 V AC, 14 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102 mm
Height
68 mm
Width
7 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
