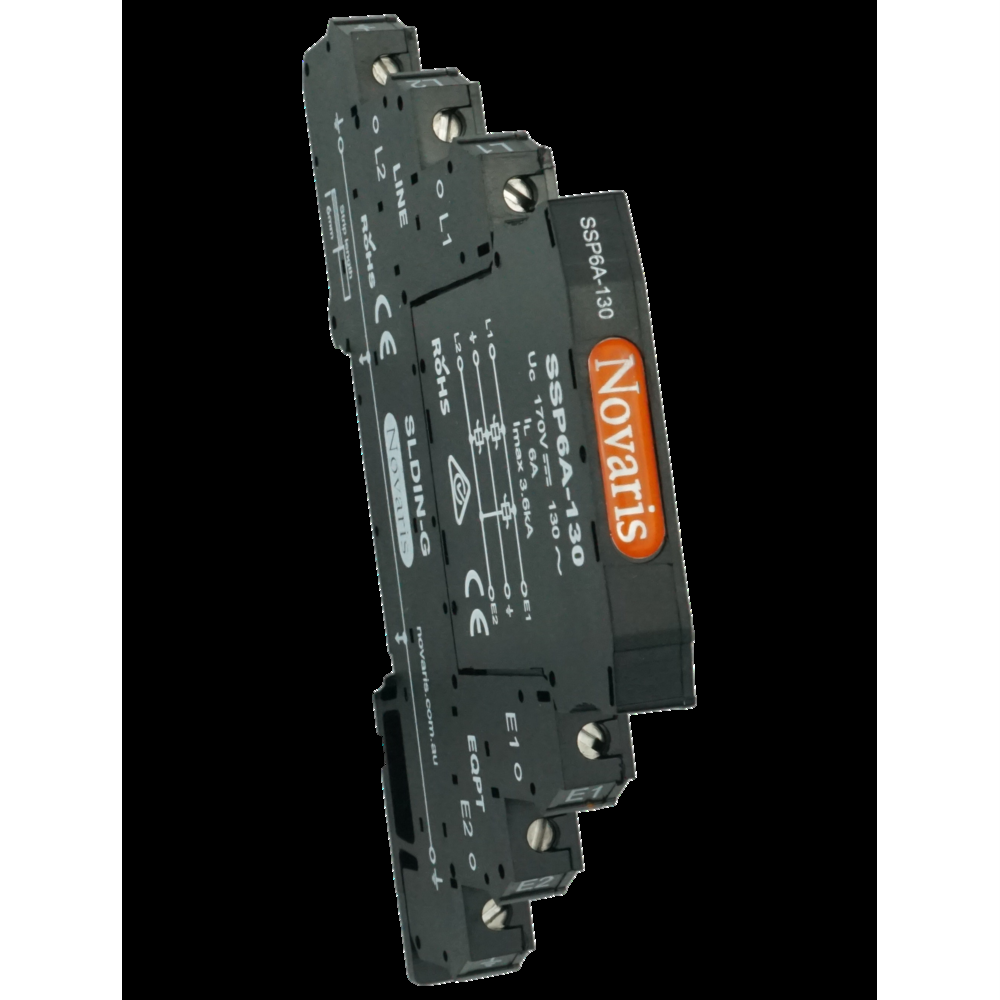

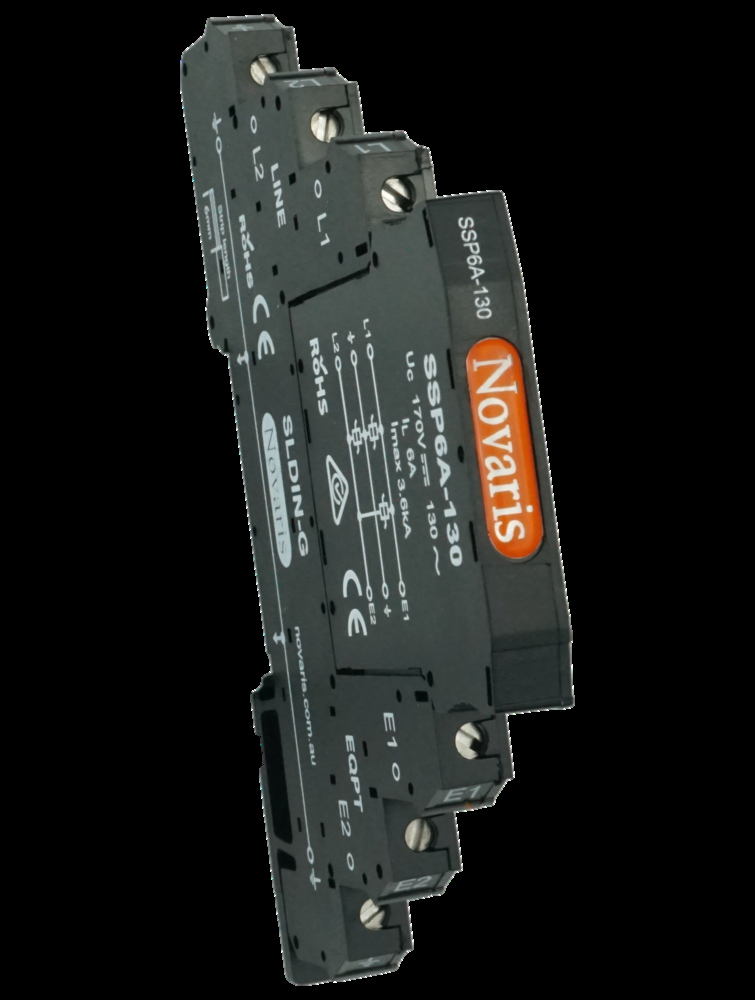

Novaris SSP6A-130-G Surge Protector 1.8kA 3.6kA 170VDC TS35 IP20

Product Code: SSP6A-130-G

  • Protects signal lines up to 170 VDC, 1.8 kA per line
  • Compact design: 7 mm wide, mounts on TS35 DIN rail
  • Fast response time of less than 5 ns
  • Operates in temperatures from -40 to 70°C
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Slimline Series Surge Protectors
Brand
Novaris
Series
SSP6 A
Application
Signal, Process Control, Input / Output / Power

Electrical

Max. Load Current
6:00 AM
No. of Phases/Lines
1 pair
Modes of Protection
Transverse and Common
Voltage Protection Level Up
240 V, 380 V, 620 V
Max. Discharge Current Imax (8/20µs)
5 kA
Max. Continuous Operating Voltage
110 V AC, 130 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102 mm
Height
68 mm
Width
7 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
