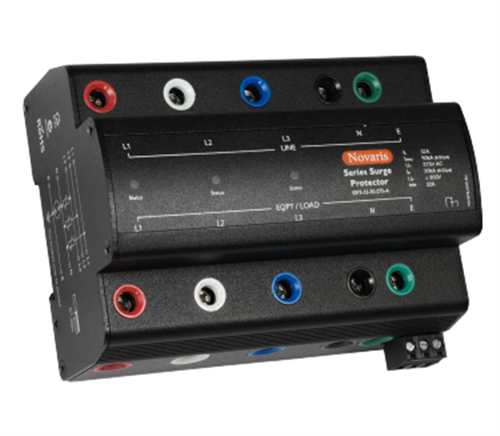

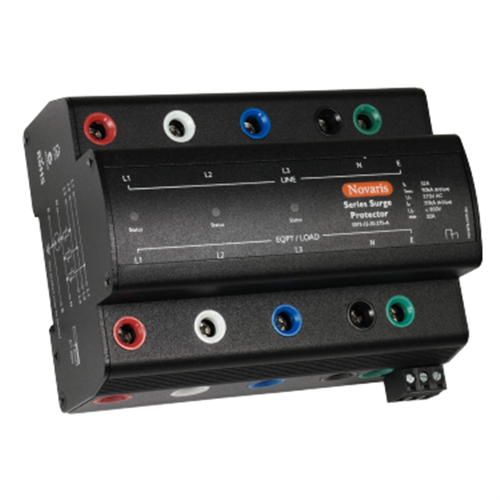

Novaris SSP3-10-10-275 Surge Protector 3 PH 10A 10kA 230VAC TS35 Panel Mounting Metal IP20

Product Code: SSP3-10-10-275

  • 230 VAC, 10 A, 3-phase surge protection
  • LED status display for each phase
  • IP20 rating for indoor use
  • Quick response time: <5 ns (L-N)
  • Mounts on TS35 DIN rail or panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Series Surge Protectors
Brand
Novaris
Series
SSP3
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Max. Backup Fuse
10:00 AM
Max. Load Current
10:00 AM
No. of Phases/Lines
3
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230 V AC
Voltage Protection Level Up
<1700 V
Max. Discharge Current Imax (8/20µs)
10 kA
Short Circuit Current Rating
25 kA
Alarm Contact
Thermal failure
Nominal Discharge Current Inom (8/20µs)
5 kA
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Mechanical

Terminal Size
2.5 mm2

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
