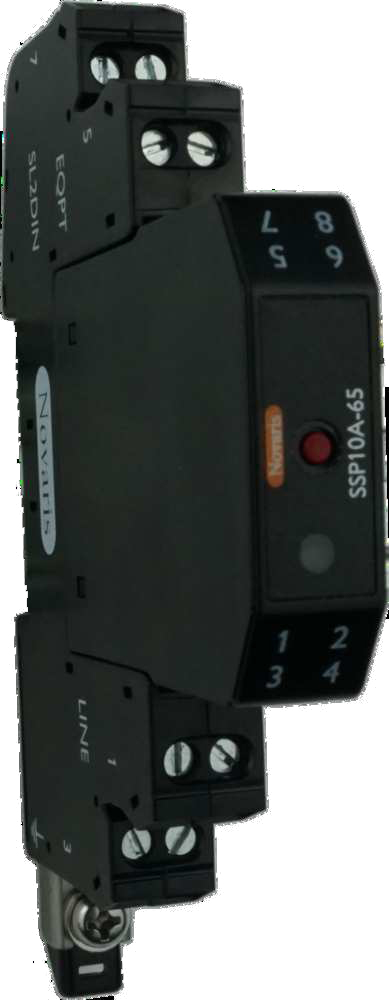

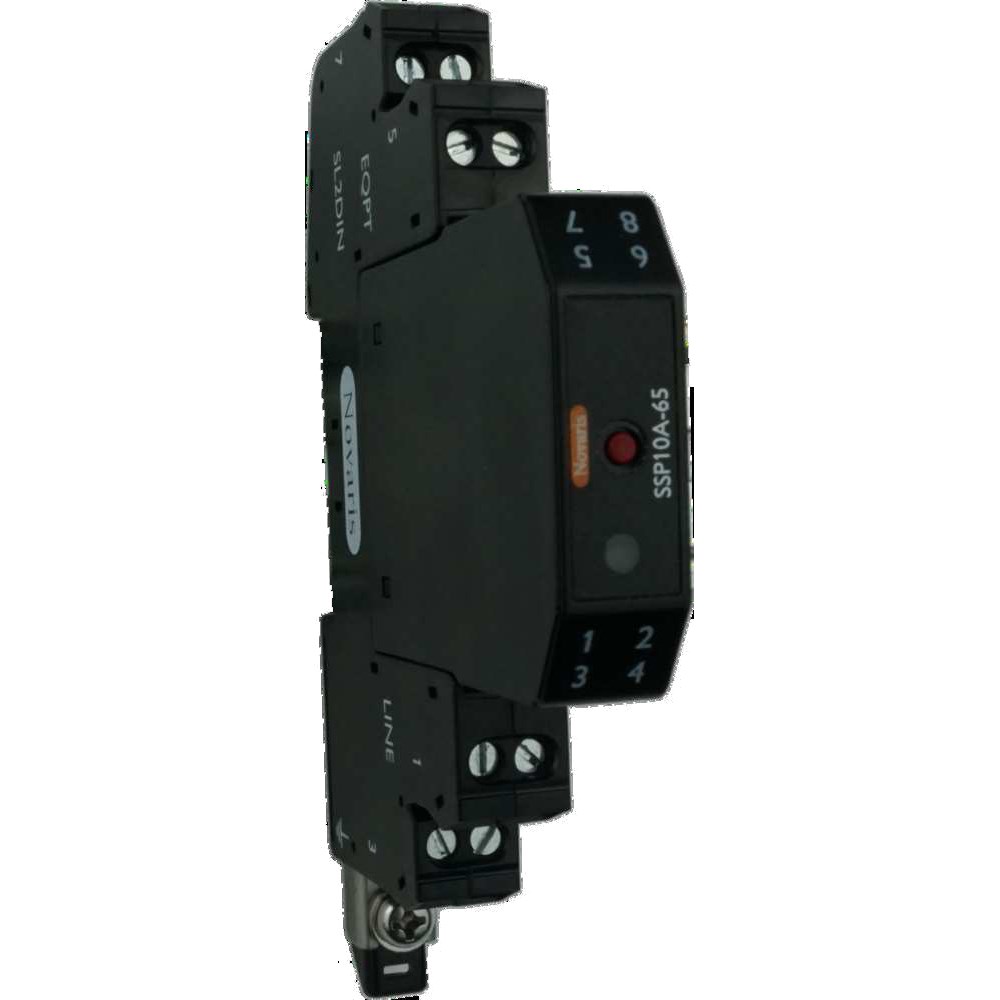

Novaris SSP10A-65 Surge Protector With Base 7.5kA 15kA 15kA 65VDC TS35 IP20

Product Code: SSP10A-65

  • Surge protection for 65 VDC systems
  • Handles up to 15 kA discharge current
  • Compact design: 12 mm width
  • Quick response time under 5 ns
  • Fits TS35 DIN Rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Series Surge Protector 10A
Brand
Novaris
Series
SSP10 A
Application
Signal, Process Control, Input / Output / Power

Electrical

Max. Load Current
10:00 AM
No. of Phases/Lines
1 pair
Modes of Protection
Transverse & Common
Voltage Protection Level Up
135 V, 210 V, 560 V, 755 V
Max. Discharge Current Imax (8/20µs)
10 kA
Max. Continuous Operating Voltage
50 V AC, 65 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110 mm
Height
71 mm
Width
12 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
