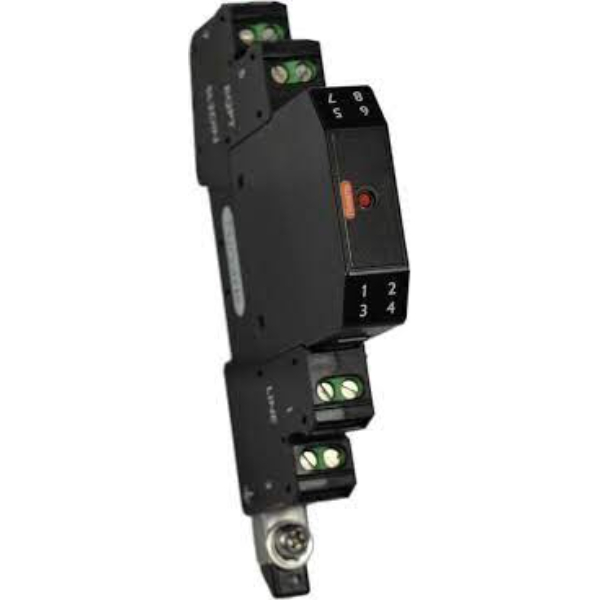

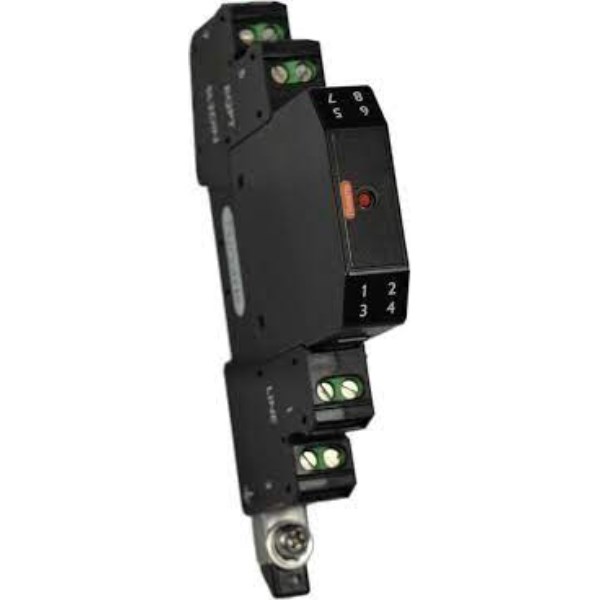

Novaris SSP10A-38 Surge Protector 7.5kA 15kA 38VDC TS35 IP20

Product Code: SSP10A-38

  • Protects signal lines up to 38 VDC
  • High current capacity: 7.5 kA/15 kA
  • Quick response time: <5 ns
  • Compact size: 12x71x110 mm
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
SSP1
Application
AC and DC low voltage power supplies

Electrical

Max. Discharge Current Imax (8/20µs)
10kA

Mechanical

Terminal Size
2.5mm²
Connection/Termination
Series

Dimensions & Physical Data

Depth
71mm
Height
110mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
