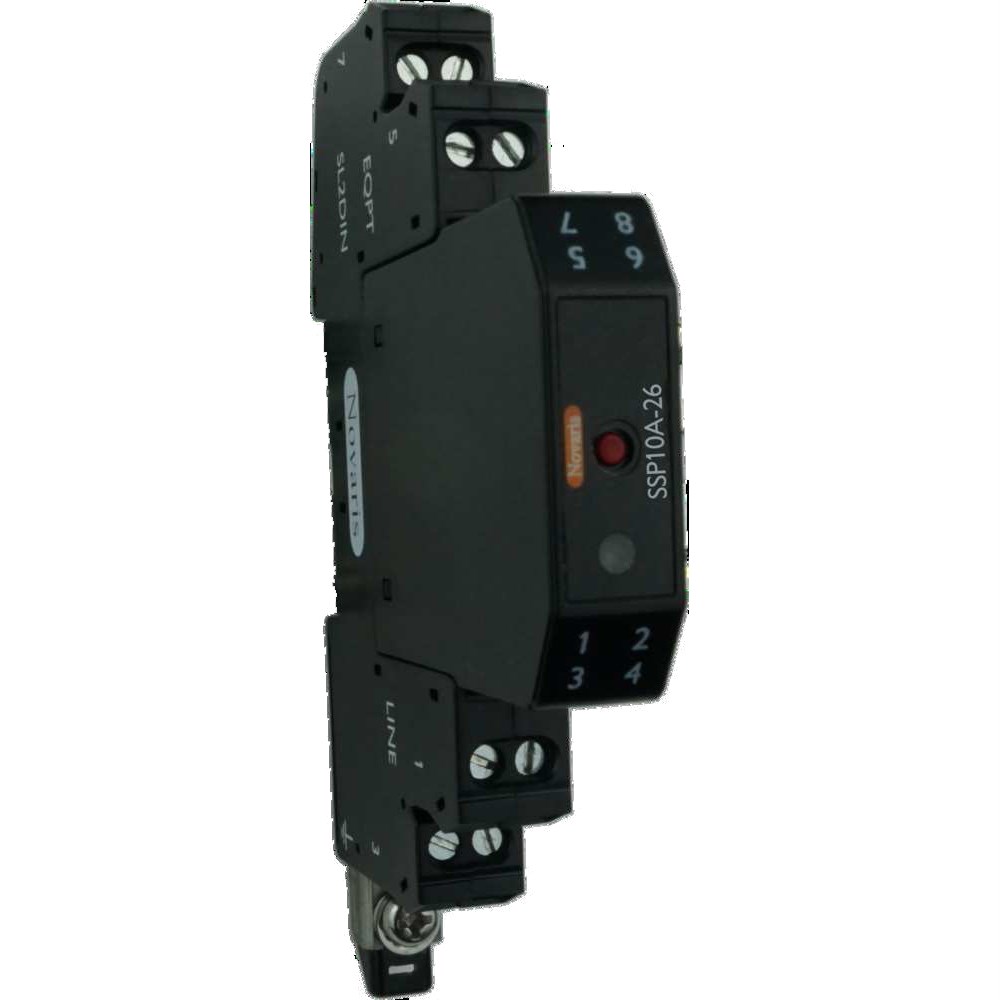

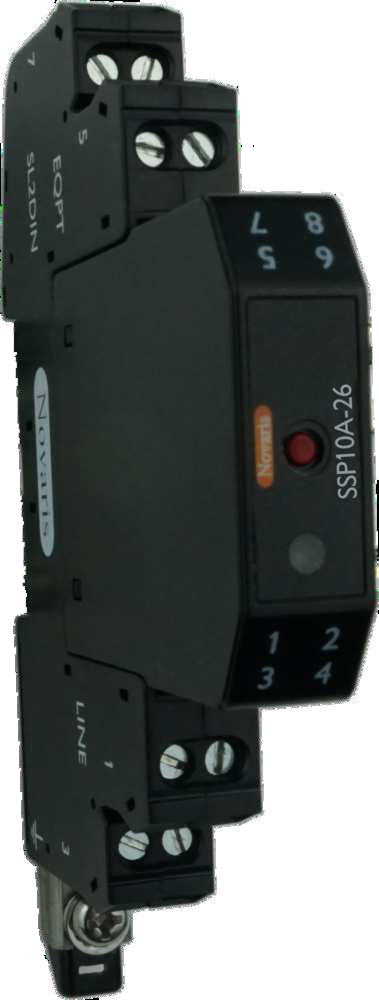

Novaris SSP10A-26 Surge Protector With Base 7.5kA 15kA 15kA 26VDC TS35 IP20

Product Code: SSP10A-26

  • Surge protection for 26 VDC systems
  • Handles up to 15 kA discharge current
  • Compact size: 12mm width, DIN Rail mountable
  • Fast response time of less than 5 ns
  • Wide temp range: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Series Surge Protector 10A
Brand
Novaris
Series
SSP10 A
Application
Signal, Process Control, Input / Output / Power

Electrical

Max. Load Current
10:00 AM
No. of Phases/Lines
1 pair
Modes of Protection
Transverse & Common
Voltage Protection Level Up
65 V, 210 V, 560 V, 755 V
Max. Discharge Current Imax (8/20µs)
10 kA
Max. Continuous Operating Voltage
20 V AC, 26 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110 mm
Height
71 mm
Width
12 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
